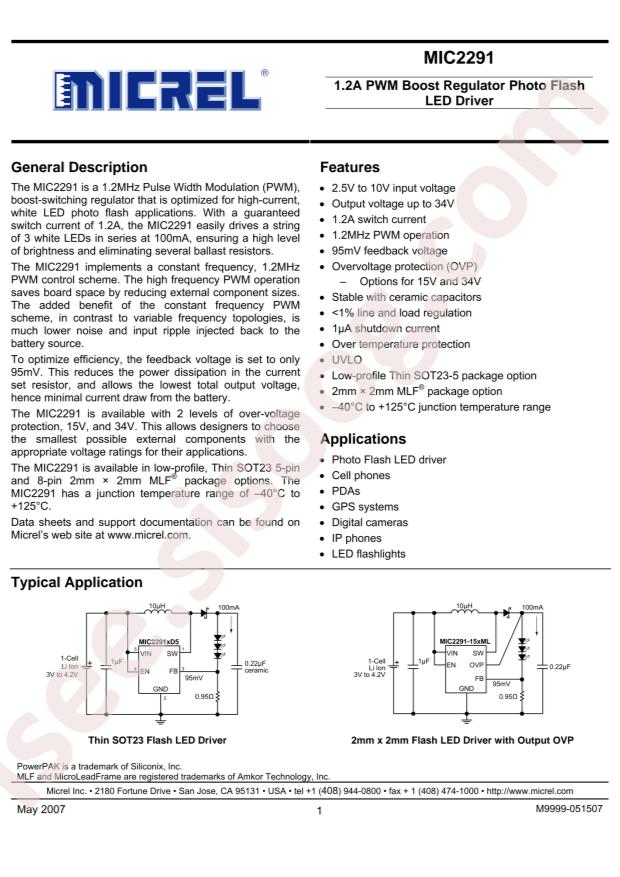

MIC2291YD5-TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MIC2291YD5-TR
|
|
حجم فایل
|
98.824
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
DC-DCVoltage Stabilizer
-
Dimming:
Analog;PWM
-
Category:
Nixie Tube Driver/LED Driver/LED Drivers
-
Channels:
1
-
Topology:
boost converter
-
Datasheet:
Microchip Tech MIC2291YD5-TR
-
Input Voltage:
2.5V~10V
-
Output Current:
1.2A
-
Switch Frequency:
1.2MHz
-
Operating temperature:
-40°C~+125°C
-
Package:
TSOT-23-5
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Internal Switch(s):
Yes
-
Number of Outputs:
1
-
Voltage - Supply (Min):
2.5V
-
Voltage - Supply (Max):
10V
-
Voltage - Output:
-
-
Current - Output / Channel:
1.2A (Switch)
-
Frequency:
1.2MHz
-
Applications:
Camera Flash
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-5 Thin, TSOT-23-5
-
Supplier Device Package:
TSOT-23-5
-
Base Part Number:
MIC2291
-
detail:
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 1.2A (Switch) TSOT-23-5
