دیتاشیت JN5169/001Z

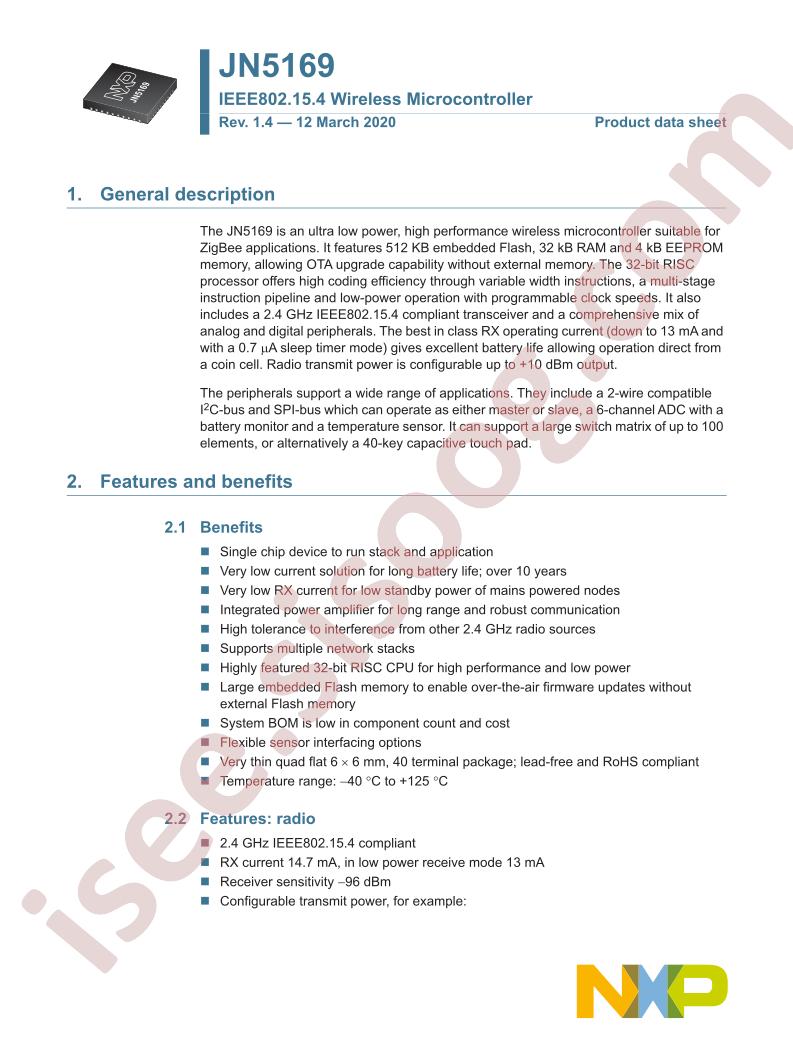

JN5169 Datasheet

مشخصات دیتاشیت

نام دیتاشیت JN5169 Datasheet
حجم فایل 2964.292 کیلوبایت
نوع فایل pdf
تعداد صفحات 96

دانلود دیتاشیت JN5169 Datasheet

JN5169 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
  • Data Rate: -
  • Datasheet: NXP Semicon JN5169/001Z
  • Interface: I2C, SPI, UART, JTAG
  • Applications: -
  • Frequency Range: -
  • Receive Current: -
  • Operating Voltage: -
  • Operating Temperature: -
  • Current Of Transmitting: -
  • Typical Application Frequency: -
  • Package: VFQFN-40-EP(6x6)
  • Manufacturer: NXP Semicon
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: TxRx + MCU
  • RF Family/Standard: 802.15.4
  • Protocol: Zigbee®
  • Modulation: O-QPSK
  • Frequency: 2.4GHz
  • Data Rate (Max): 400kbps
  • Power - Output: 10dBm
  • Sensitivity: -96.5dBm
  • Memory Size: 512kB Flash, 4kB EEPROM, 32kB RAM
  • Serial Interfaces: I²C, JTAG, SPI, UART
  • GPIO: 20
  • Voltage - Supply: 2V ~ 3.6V
  • Current - Receiving: 13mA ~ 15mA
  • Current - Transmitting: 14mA ~ 23.3mA
  • Mounting Type: Surface Mount
  • Package / Case: 40-VFQFN Exposed Pad
  • Supplier Device Package: 40-HVQFN (6x6)
  • Base Part Number: JN516
  • detail: IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 40-VFQFN Exposed Pad
