MK02FN64VLF10 دیتاشیت

مشخصات دیتاشیت

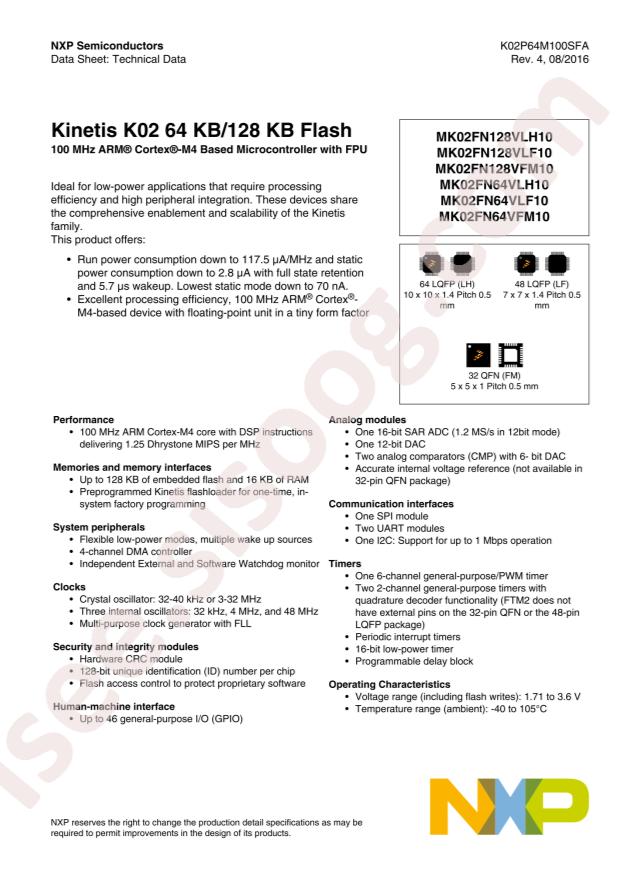

مشاهده دیتاشیت MK02FN64VLF10	دانلود دیتاشیت

مستندات دیگری یافت نشد!

RoHS: true
CPU Core: ARM Cortex-M4
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
ADC (Bit): 16bit
DAC (Bit): 12bit
Datasheet: NXP Semicon MK02FN64VLF10
CPU Maximum Speed: 100MHz
GPIO Ports Number: 35
Low-Voltage Detect: Yes
Internal Oscillator: Yes
Direct Memory Access: Yes
Program Storage Size: 64KB
Operating Voltage Range: 1.71V~3.6V
Operating Temperature Range: -40°C~+105°C
Package: LQFP-48
Manufacturer: NXP Semicon
Series: Kinetis K02
Packaging: Tray
Part Status: Active
Core Processor: ARM® Cortex®-M4
Core Size: 32-Bit
Speed: 100MHz
Connectivity: I²C, SPI, UART/USART
Peripherals: DMA, LVD, POR, PWM
Number of I/O: 35
Program Memory Size: 64KB (64K x 8)
Program Memory Type: FLASH
EEPROM Size: -
RAM Size: 16K x 8
Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
Data Converters: A/D 12x16b; D/A 1x12b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 105°C (TA)
Mounting Type: Surface Mount
Package / Case: 48-LQFP
Supplier Device Package: 48-LQFP (7x7)
Base Part Number: MK02
detail: ARM® Cortex®-M4 Kinetis K02 Microcontroller IC 32-Bit 100MHz 64KB (64K x 8) FLASH 48-LQFP (7x7)
