- دیتاشیت LPC11U2x Datasheet
دیتاشیت LPC11U2x Datasheet
مشخصات دیتاشیت
| نام دیتاشیت | LPC11U2x Datasheet |
|---|---|
| حجم فایل | 1854.045 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 74 |

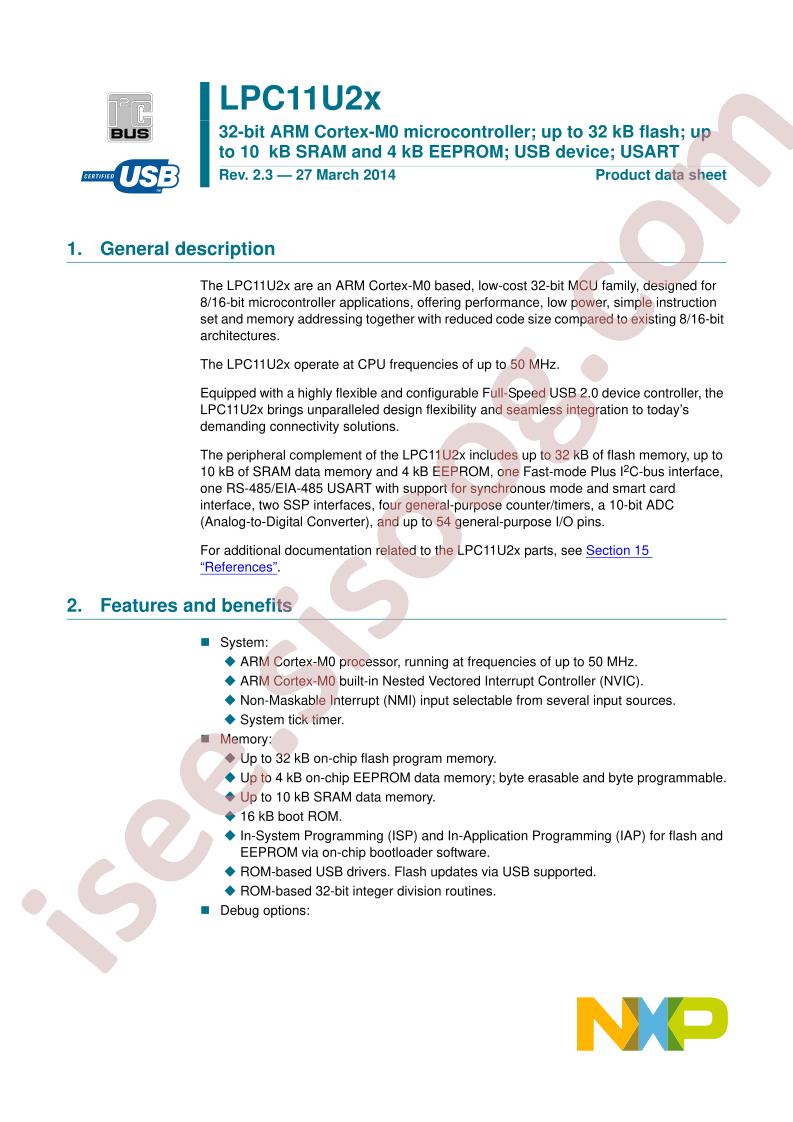

LPC11U2x Datasheet |
دانلود دیتاشیت |
|---|
سایر مستندات
مستندات دیگری یافت نشد!
مشخصات فنی
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M0
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 8KB
- Watchdog: -
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: NXP Semicon LPC11U24FHI33/301,
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 50MHz
- GPIO Ports Number: 26
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 32KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: HVQFN-32-EP(5x5)
- Manufacturer: NXP Semicon
- Series: LPC11Uxx
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M0
- Core Size: 32-Bit
- Speed: 50MHz
- Connectivity: I²C, Microwire, SPI, SSI, SSP, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, POR, WDT
- Number of I/O: 26
- Program Memory Size: 32KB (32K x 8)
- EEPROM Size: 2K x 8
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Data Converters: A/D 8x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 32-VFQFN Exposed Pad
- Supplier Device Package: 32-HVQFN (5x5)
- Base Part Number: LPC11
- detail: ARM® Cortex®-M0 LPC11Uxx Microcontroller IC 32-Bit 50MHz 32KB (32K x 8) FLASH 32-HVQFN (5x5)
