دیتاشیت MIC4604YMT-T5

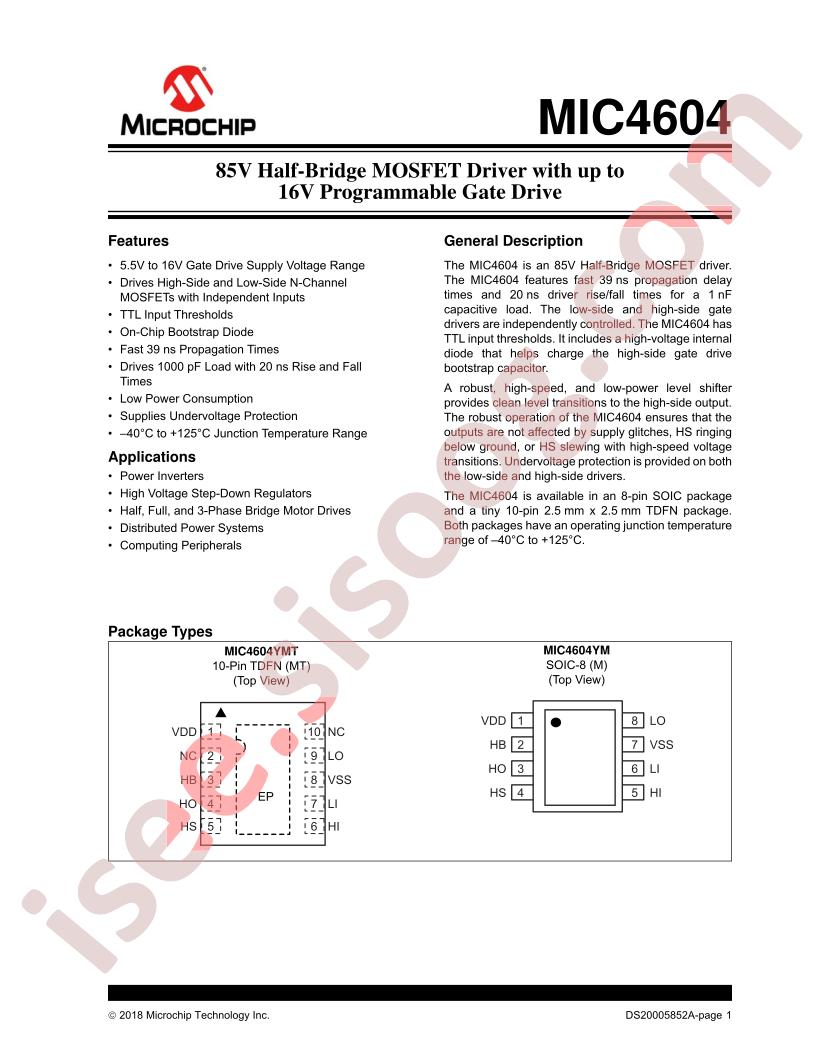

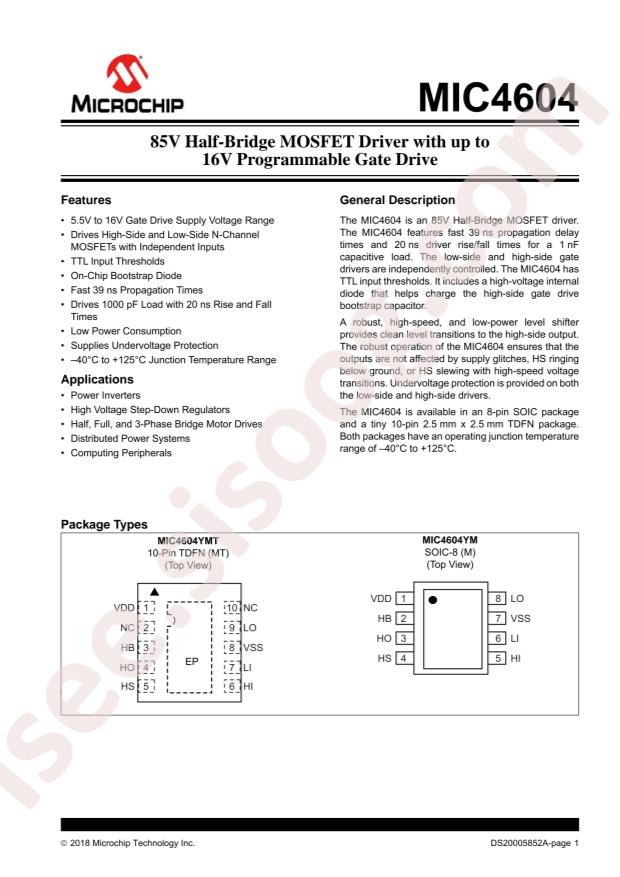

MIC4604 DataSheet

مشخصات دیتاشیت

نام دیتاشیت MIC4604 DataSheet
حجم فایل 1239.541 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت MIC4604 DataSheet

MIC4604 DataSheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech MIC4604YMT-T5
  • Fall Time: 20ns
  • Load Type: MOSFET
  • Rise Time: 20ns
  • Supply Voltage: 5.25V~16V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 1A
  • Peak Output Current(source): 1.5A
  • Package: TDFN-10
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 5.25V ~ 16V
  • Logic Voltage - VIL, VIH: 0.8V, 2.2V
  • Current - Peak Output (Source, Sink): 1.5A, 1A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 20ns, 20ns
  • Mounting Type: Surface Mount

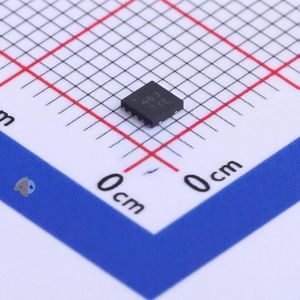

  • Package / Case: 10-UFDFN Exposed Pad
  • Supplier Device Package: 10-TDFN (2.5x2.5)
  • Base Part Number: MIC4604
  • detail: Half-Bridge Gate Driver IC Non-Inverting 10-TDFN (2.5x2.5)
