- Portable Power Conversion Design Guide
Portable Power Conversion Design Guide Datasheet
Datasheet specifications
| Datasheet's name | Portable Power Conversion Design Guide |
|---|---|
| File size | 6712.714 KB |
| File type | |
| Number of pages | 28 |
Download Datasheet Portable Power Conversion Design Guide |
Download Datasheet |
|---|
Other documentations

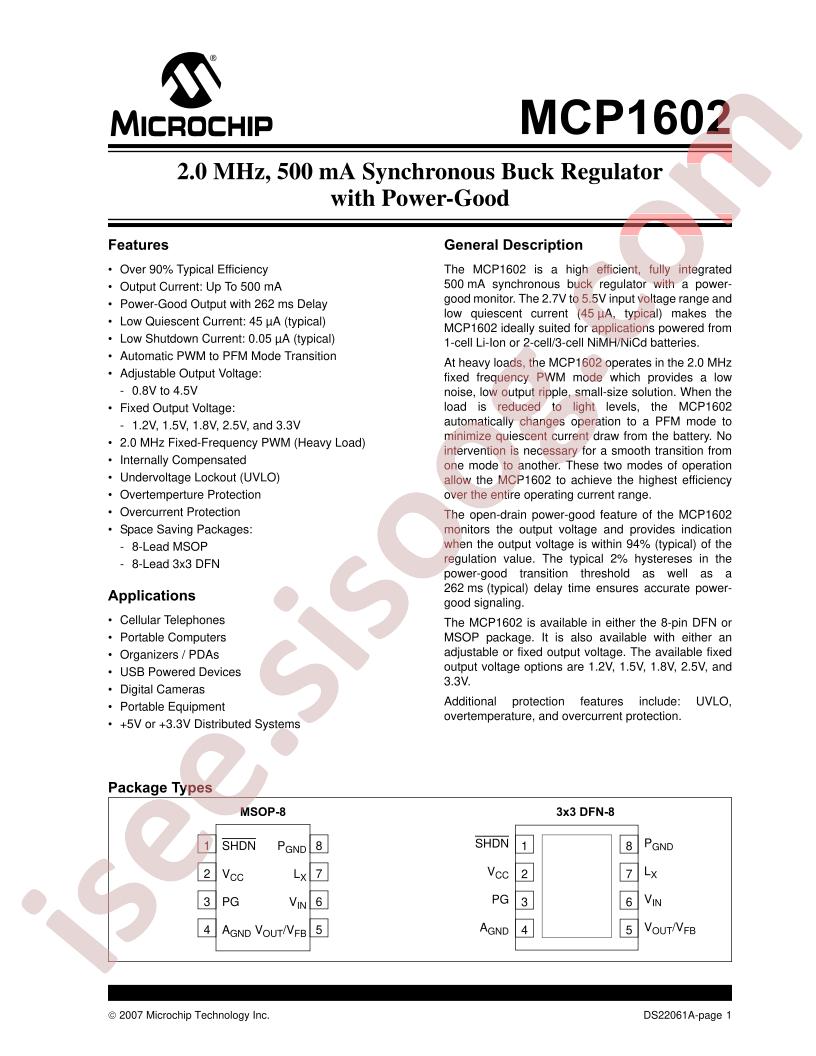

MCP1602 Datasheet 26 pages
MCP1602-330I/MS 26 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Microchip Tech MCP1602-120I/MS
- Output Type: Fixed
- Input Voltage: 2.7V~5.5V
- Output Voltage: 1.2V
- Number of Outputs: 1
- Switching Frequency: 2MHz
- Output Current (Max): 500mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: MSOP-8
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.7V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): -
- Current - Output: 500mA
- Frequency - Switching: 2MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-MSOP
- Base Part Number: MCP1602
- detail: Buck Switching Regulator IC Positive Fixed 1.2V 1 Output 500mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
