دیتاشیت MCP1258-E/MF

مشخصات دیتاشیت

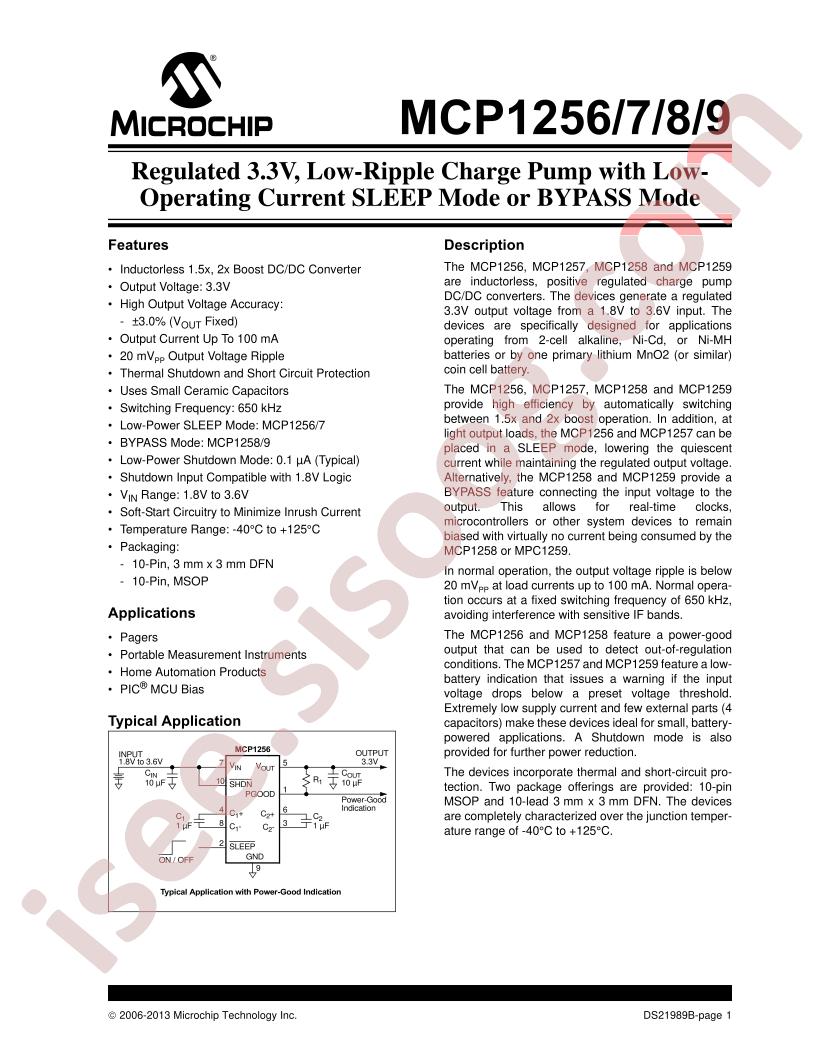

دانلود دیتاشیت MCP1256/7/8/9 Datasheet	MCP1256/7/8/9 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType
Topology: -
Datasheet: Microchip Tech MCP1258-E/MF
Output Type: Fixed
Input Voltage: 1.8V~3.6V
Output Voltage: 3.3V
Number of Outputs: 1
Switching Frequency: 650kHz
Output Current (Max): 100mA
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: DFN-10-EP(3x3)
Manufacturer: Microchip Tech
Series: -
Packaging: Tube
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 1.8V
Voltage - Input (Max): 3.6V
Voltage - Output (Min/Fixed): 3.3V
Voltage - Output (Max): -
Current - Output: 100mA
Frequency - Switching: 650kHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 10-VFDFN Exposed Pad
Supplier Device Package: 10-DFN (3x3)
Base Part Number: MCP1258
detail: Charge Pump Switching Regulator IC Positive Fixed 3.3V 1 Output 100mA 10-VFDFN Exposed Pad
