دیتاشیت PIC12HV752-I/MF
مشخصات دیتاشیت
| نام دیتاشیت | PIC16(F,HV)753, PIC12(F,HV)752 Brief |
|---|---|
| حجم فایل | 217.803 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت PIC16(F,HV)753, PIC12(F,HV)752 Brief |

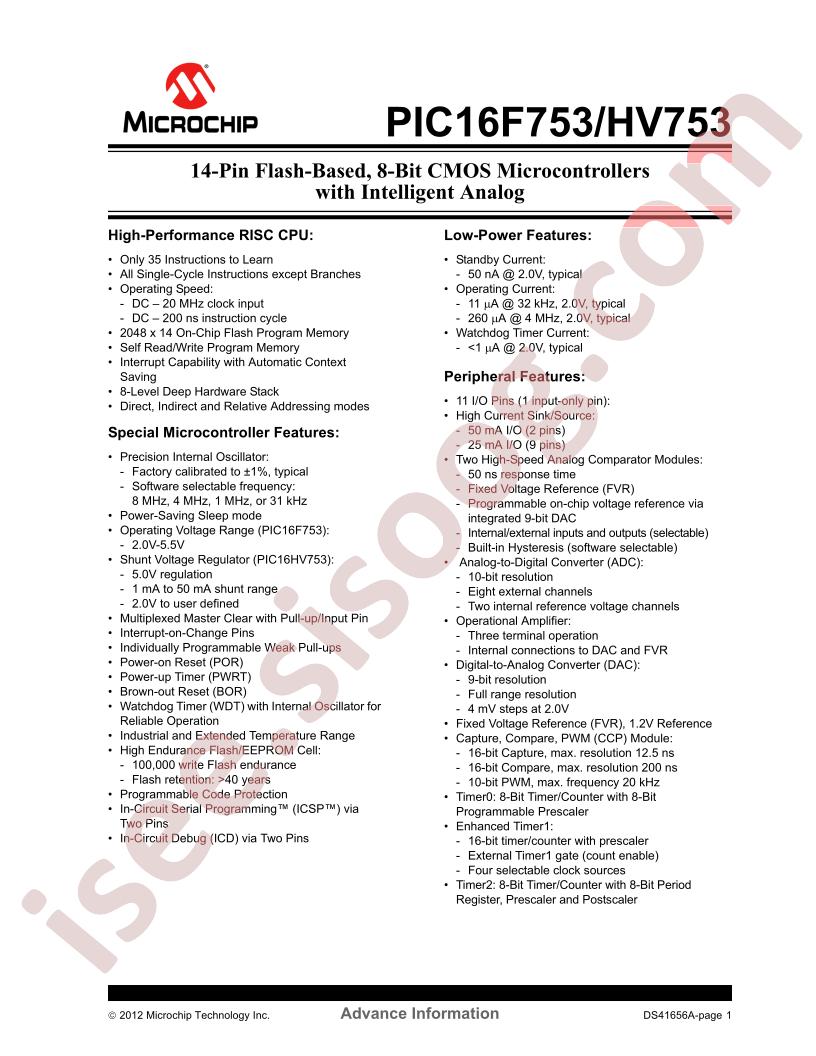

PIC16(F,HV)753, PIC12(F,HV)752 Brief Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: PIC
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: -
- ADC (Bit): 10bit
- DAC (Bit): 5bit
- Datasheet: Microchip Tech PIC12HV752-I/MF
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 20MHz
- GPIO Ports Number: 5
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 1KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2V~5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: DFN-8(3x3)
- Manufacturer: Microchip Tech
- Series: PIC® 12F
- Packaging: Tube
- Part Status: Active
- Core Processor: PIC
- Core Size: 8-Bit
- Speed: 20MHz
- Connectivity: -
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 5
- Program Memory Size: 1.75KB (1K x 14)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 2V ~ 5V
- Data Converters: A/D 4x10b; D/A 1x5b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-DFN-EP (3x3)
- Base Part Number: PIC12HV752
- detail: PIC PIC® 12F Microcontroller IC 8-Bit 20MHz 1.75KB (1K x 14) FLASH 8-DFN-EP (3x3)
