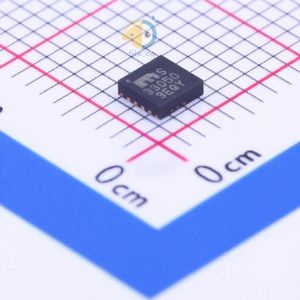

MIC33050-SYHL-TR دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت MIC33050-SYHL-TR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Microchip Tech MIC33050-SYHL-TR
Output Type: Fixed
Input Voltage: 2.7V~5.5V
Output Voltage: 3.3V
Number of Outputs: 1
Switching Frequency: 4MHz
Output Current (Max): 600mA
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: MLF-12
Manufacturer: Microchip Tech
Series: HyperLight Load®
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.7V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 3.3V
Voltage - Output (Max): -
Current - Output: 600mA
Frequency - Switching: 4MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 12-VFDFN Exposed Pad, 12-MLF®
Supplier Device Package: 12-MLF™ (3x3)
Base Part Number: MIC33050
detail: Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 600mA 12-VFDFN Exposed Pad, 12-MLF®
