- BAP50-03

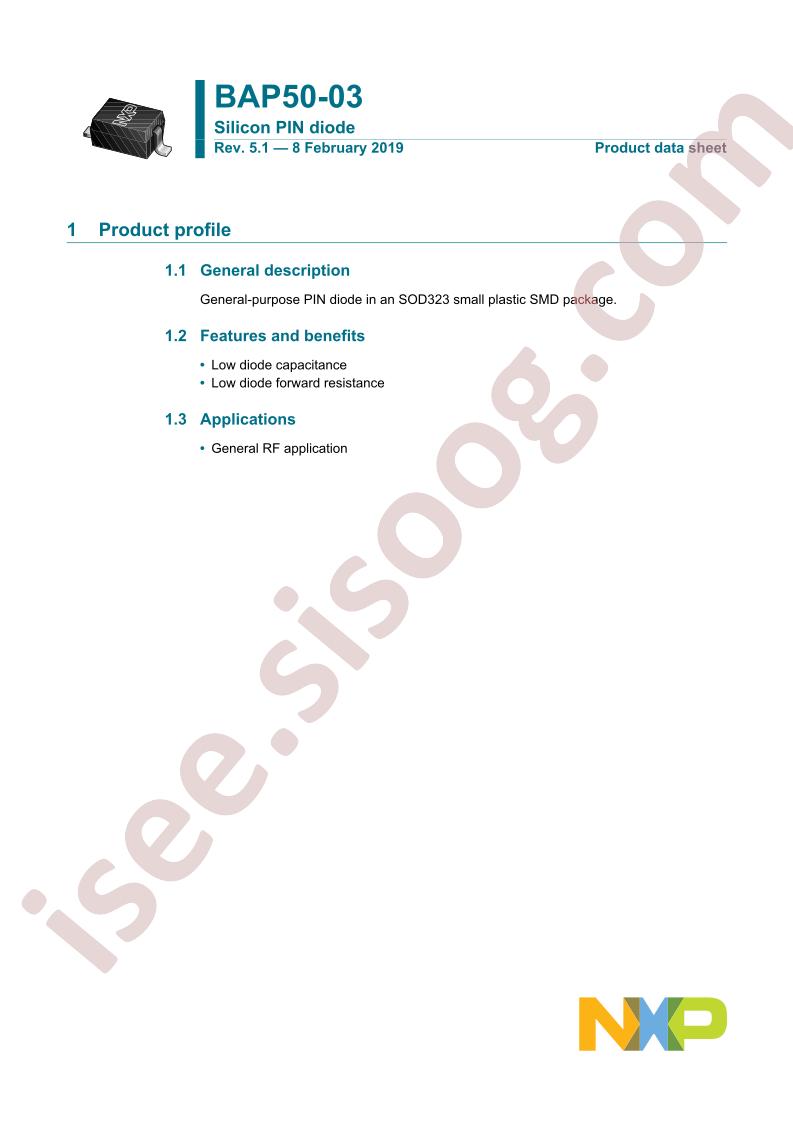

BAP50-03,135 Datasheet
Datasheet specifications
| Datasheet's name | BAP50-03 |
|---|---|
| File size | 169.706 KB |
| File type | |
| Number of pages | 9 |
Download Datasheet BAP50-03 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: NXP USA Inc.
- Series: -
- Packaging: Digi-Reel®
- Part Status: Active
- Diode Type: PIN - Single
- Voltage - Peak Reverse (Max): 50V
- Current - Max: 50mA
- Capacitance @ Vr, F: 0.35pF @ 5V, 1MHz
- Resistance @ If, F: 5Ohm @ 10mA, 100MHz
- Power Dissipation (Max): 500mW
- Operating Temperature: -65°C ~ 150°C (TJ)
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Base Part Number: BAP50
- detail: RF Diode PIN - Single 50V 50mA 500mW SOD-323
