MKL15Z64VFM4 دیتاشیت

MKL15Z128VLH4

مشخصات دیتاشیت

نام دیتاشیت MKL15Z128VLH4
حجم فایل 90.591 کیلوبایت
نوع فایل pdf
تعداد صفحات 57

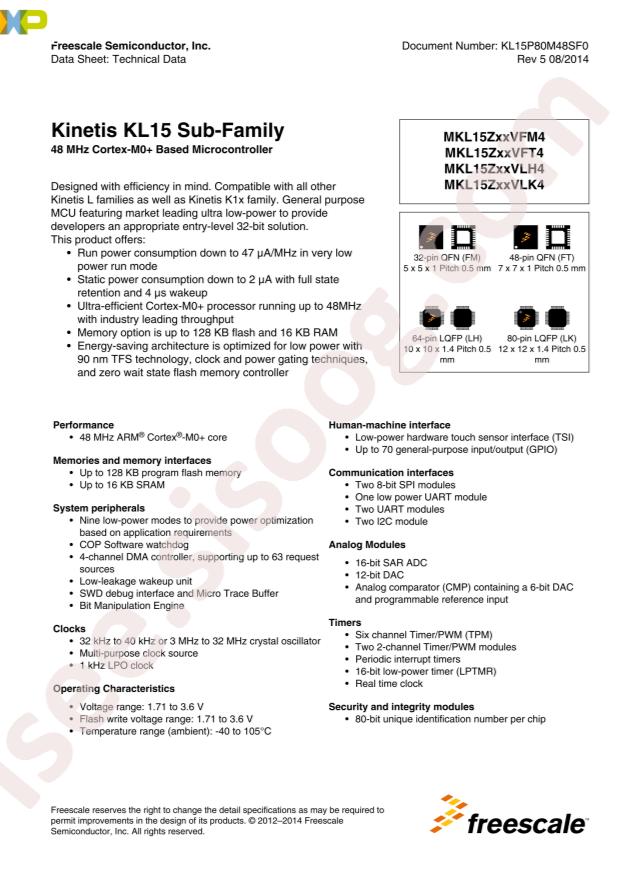

مشاهده دیتاشیت MKL15Z128VLH4

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • EEPROM: -
  • CPU Core: ARM-MSeries
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: -
  • Watchdog: Yes
  • ADC (Bit): 16bit
  • DAC (Bit): 12bit
  • Datasheet: NXP Semicon MKL15Z64VFM4
  • PWM (Bit): -
  • Real-Time Clock: -
  • CPU Maximum Speed: 48MHz
  • GPIO Ports Number: 28
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Program Memory Type: FLASH
  • Direct Memory Access: Yes
  • Program Storage Size: 64KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 1.71V~3.6V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+105°C
  • Secure Digital Input and Output: -
  • Package: QFN-32-EP(5x5)
  • Manufacturer: NXP Semicon
  • Series: Kinetis KL1
  • Packaging: Tray
  • Part Status: Active
  • Core Processor: ARM® Cortex®-M0+
  • Core Size: 32-Bit
  • Speed: 48MHz
  • Connectivity: I²C, LINbus, SPI, TSI, UART/USART
  • Peripherals: Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT
  • Number of I/O: 28
  • Program Memory Size: 64KB (64K x 8)
  • EEPROM Size: -
  • Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
  • Data Converters: A/D 9x16b; D/A 1x12b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 105°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 32-VFQFN Exposed Pad
  • Supplier Device Package: 32-QFN (5x5)
  • Base Part Number: MKL15
  • detail: ARM® Cortex®-M0+ Kinetis KL1 Microcontroller IC 32-Bit 48MHz 64KB (64K x 8) FLASH 32-QFN (5x5)
