دیتاشیت MK10DX128VLQ10

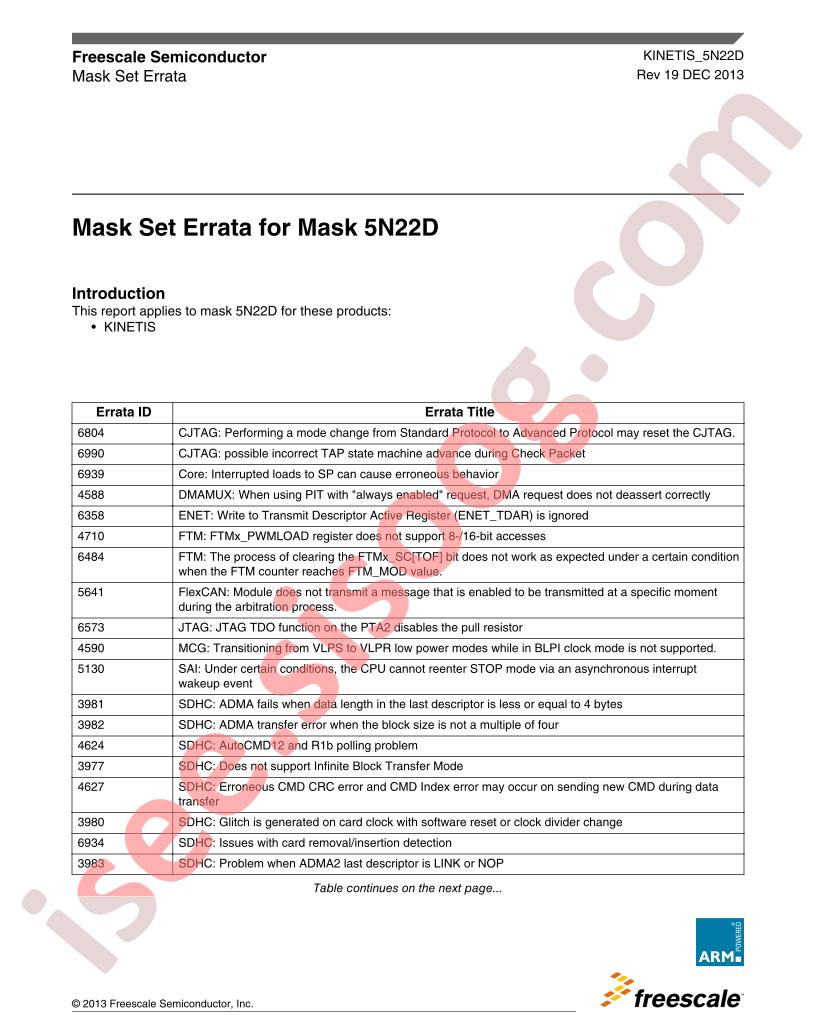

5N22D Mask Set Errata

مشخصات دیتاشیت

نام دیتاشیت 5N22D Mask Set Errata
حجم فایل 171.084 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت 5N22D Mask Set Errata

5N22D Mask Set Errata Datasheet

مشخصات

  • RoHS: true
  • EEPROM: -
  • CPU Core: ARM Cortex-M4
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: -
  • Watchdog: Yes
  • ADC (Bit): 16bit
  • DAC (Bit): 12bit
  • Datasheet: NXP Semicon MK10DX128VLQ10
  • PWM (Bit): -
  • Real-Time Clock: -
  • CPU Maximum Speed: 100MHz
  • GPIO Ports Number: 104
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: DMA
  • Program Memory Type: FLASH
  • Direct Memory Access: Yes
  • Program Storage Size: 128KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 1.71V~3.6V
  • Infrared Data Association: Yes
  • Operating Temperature Range: -40°C~+105°C
  • Secure Digital Input and Output: -
  • Package: LQFP-144(20x20)
  • Manufacturer: NXP Semicon
  • Series: Kinetis K10
  • Packaging: Tray
  • Part Status: Active
  • Core Processor: ARM® Cortex®-M4
  • Core Size: 32-Bit
  • Speed: 100MHz
  • Connectivity: CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART
  • Peripherals: DMA, I²S, LVD, POR, PWM, WDT
  • Number of I/O: 104
  • Program Memory Size: 128KB (128K x 8)
  • EEPROM Size: 2K x 8
  • Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
  • Data Converters: A/D 46x16b; D/A 2x12b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 105°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 144-LQFP
  • Supplier Device Package: 144-LQFP (20x20)
  • Base Part Number: MK10
  • detail: ARM® Cortex®-M4 Kinetis K10 Microcontroller IC 32-Bit 100MHz 128KB (128K x 8) FLASH 144-LQFP (20x20)
