NX5P3363UKZ دیتاشیت

NX5P3363

مشخصات دیتاشیت

نام دیتاشیت NX5P3363
حجم فایل 1431.724 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

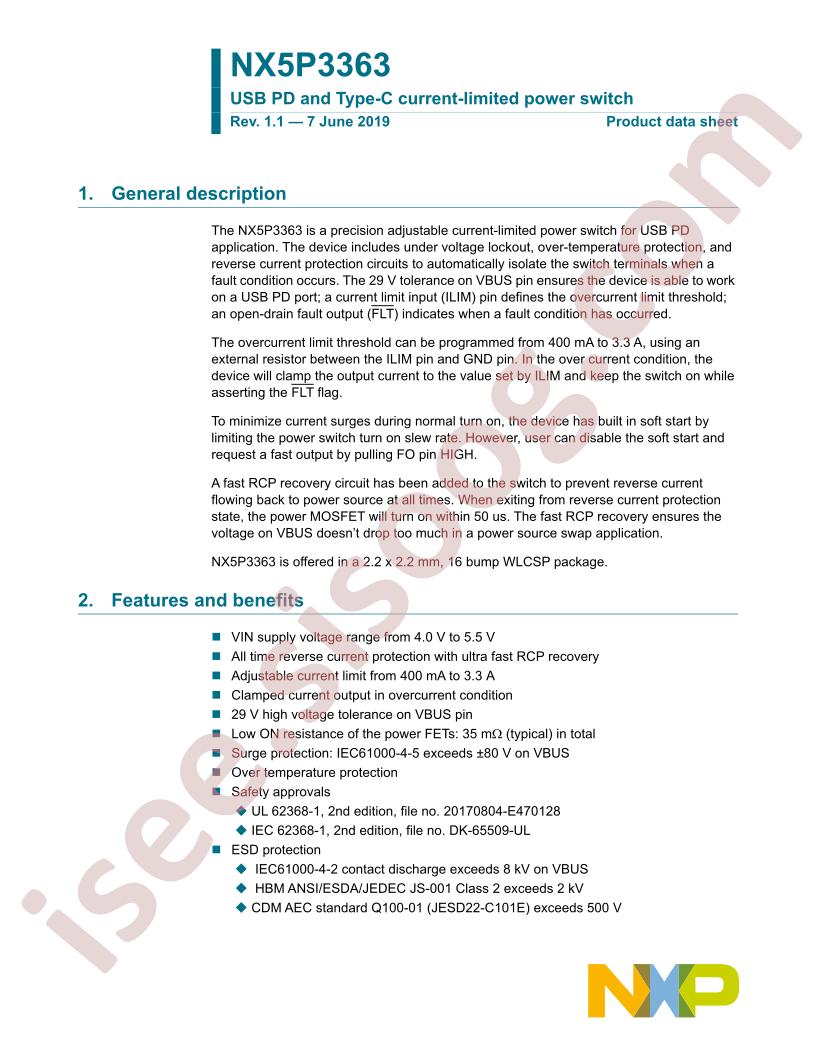

مشاهده دیتاشیت NX5P3363

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: NXP Semicon NX5P3363UKZ
  • Input Voltage: 4V~5.5V
  • Output Current: 3.3A
  • Number of Outputs: 1
  • Resistor On-State: 35mΩ
  • Operating Temperature -: -40°C~+85°C

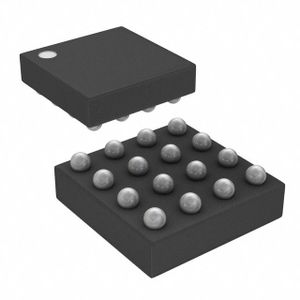

  • Package: WLCSP-16(2.2x2.2)
  • Manufacturer: NXP Semicon
  • Series: NX5
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: USB Switch
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 4V ~ 5.5V
  • Voltage - Supply (Vcc/Vdd): -
  • Current - Output (Max): 3.3A
  • Rds On (Typ): 35mOhm
  • Input Type: Non-Inverting
  • Features: Fault Condition Indicator
  • Fault Protection: Over Current, Over Temperature, Reverse Current
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 16-WLCSP (2.2x2.2)
  • Package / Case: 16-UFBGA, WLCSP
  • Base Part Number: NX5
  • detail: Power Switch/Driver 1:1 N-Channel 3.3A 16-WLCSP (2.2x2.2)
