PTN36502AHQX دیتاشیت

PTN36502AHQX

مشخصات دیتاشیت

نام دیتاشیت PTN36502AHQX
حجم فایل 84.818 کیلوبایت
نوع فایل pdf
تعداد صفحات 58

مشاهده دیتاشیت PTN36502AHQX

دانلود دیتاشیت

سایر مستندات

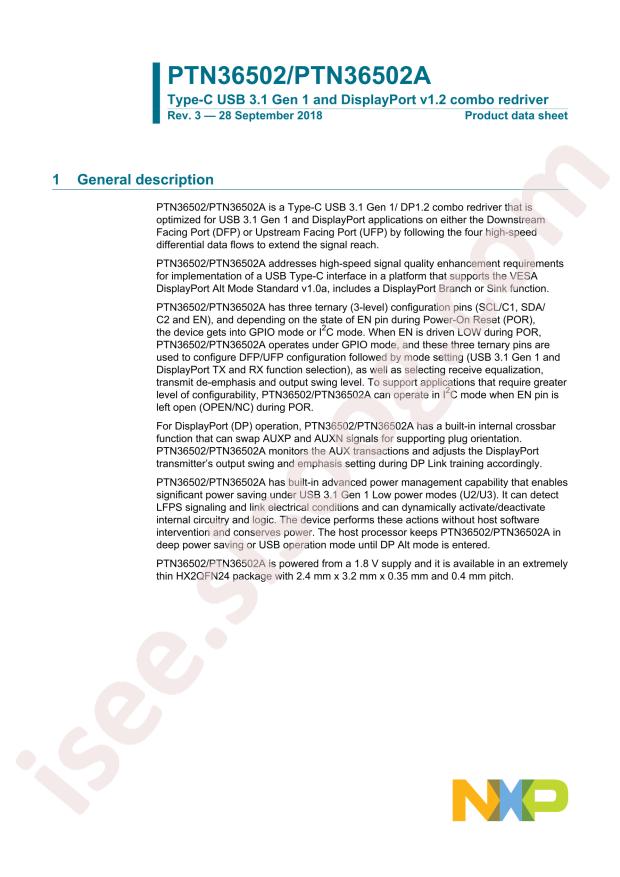

PTN36502(A) Datasheet 58 pages

مشخصات فنی

  • RoHS: true
  • Category: Communication Interface Chip/UART/485/232/USB ICs
  • Data Rate: 5.4Gbps
  • Datasheet: NXP Semicon PTN36502AHQX
  • Supply Voltage: 1.7V~1.9V
  • Operating Temperature: -40°C~+85°C@(Ta)

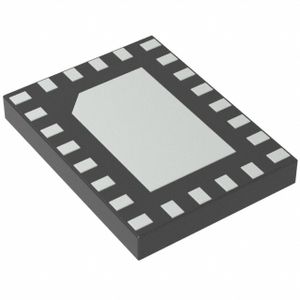

  • Package: HX2QFN-24-EP(2.4x3.2)
  • Manufacturer: NXP Semicon
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Buffer, ReDriver
  • Applications: USB Type C
  • Input: Differential
  • Output: Differential
  • Data Rate (Max): 5.4Gbps
  • Number of Channels: -
  • Delay Time: 140ps
  • Signal Conditioning: Input Equalization, Output De-Emphasis
  • Capacitance - Input: 10pF
  • Voltage - Supply: 1.7V ~ 1.9V
  • Current - Supply: 225mA
  • Mounting Type: Surface Mount
  • Package / Case: 24-XFQFN Exposed Pad
  • Supplier Device Package: 24-HX2QFN (2.4x3.2)
  • Base Part Number: PTN36
  • detail: Buffer, ReDriver Channel 5.4Gbps 24-HX2QFN (2.4x3.2)
