LPC5514JBD64E دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

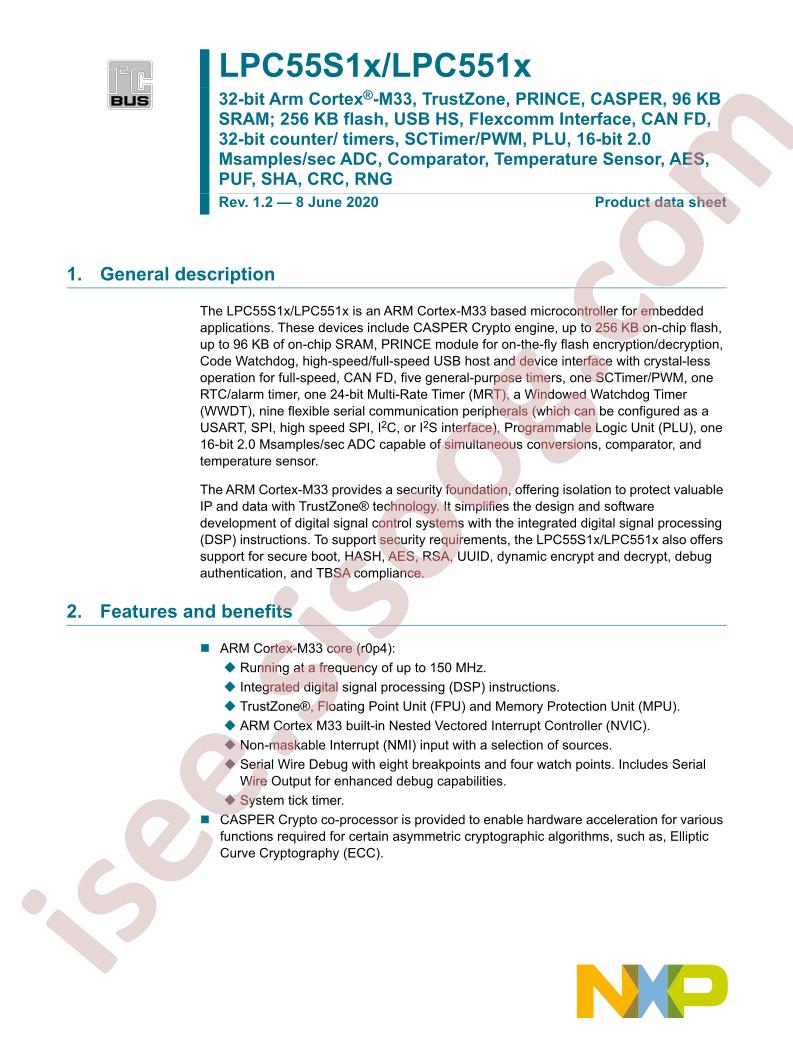

LPC55S1x, LPC551x
|
|
حجم فایل
|
4934.698
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
128
|
مشخصات فنی
-
RoHS:
true
-
EEPROM:
-
-
CPU Core:
ARM-MSeries
-
Category:
Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
-
RAM Size:
80KB
-
Watchdog:
Yes
-
ADC (Bit):
16bit
-
DAC (Bit):
-
-
Datasheet:
NXP Semicon LPC5514JBD64E
-
PWM (Bit):
-
-
Real-Time Clock:
-
-
CPU Maximum Speed:
150MHz
-
GPIO Ports Number:
36
-
Low-Voltage Detect:
Yes
-
CCP Capture/Compare:
-
-
Internal Comparator:
-
-
Internal Oscillator:
Yes
-
Peripheral/Function:
PWM;WDT
-
Program Memory Type:
FLASH
-
Direct Memory Access:
Yes
-
Program Storage Size:
128KB
-
Universal Serial Bus:
Yes
-
communication protocol:
-
-
Operating Voltage Range:
1.8V~3.6V
-
Infrared Data Association:
-
-
Operating Temperature Range:
-40°C~+105°C
-
Secure Digital Input and Output:
-
-
Package:
HTQFP-64(10x10)
-
Manufacturer:
NXP Semicon
-
Series:
LPC551x
-
Part Status:
Active
-
Core Processor:
ARM® Cortex®-M33
-
Core Size:
32-Bit
-
Speed:
150MHz
-
Connectivity:
Flexcomm, I²C, SPI, UART/USART, USB
-
Peripherals:
Brown-out Detect/Reset, DMA, I²S, POR, PWM, RNG, WDT
-
Number of I/O:
36
-
Program Memory Size:
128KB (128K x 8)
-
EEPROM Size:
-
-
Voltage - Supply (Vcc/Vdd):
1.8V ~ 3.6V
-
Data Converters:
A/D 10x16b SAR
-
Oscillator Type:
Internal
-
Operating Temperature:
-40°C ~ 105°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
64-TQFP Exposed Pad
-
Supplier Device Package:
64-HTQFP (10x10)
-
Base Part Number:
LPC55
-
detail:
ARM® Cortex®-M33 LPC551x Microcontroller IC 32-Bit 150MHz 128KB (128K x 8) FLASH 64-HTQFP (10x10)
