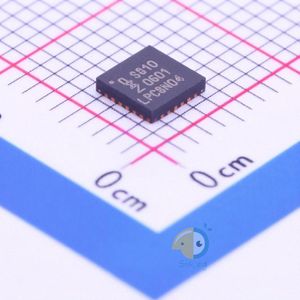

LPC8N04FHI24Z دیتاشیت

LPC8N04FHI24Z

مشخصات دیتاشیت

نام دیتاشیت LPC8N04FHI24Z
حجم فایل 60.162 کیلوبایت
نوع فایل pdf
تعداد صفحات 39

دانلود دیتاشیت LPC8N04FHI24Z

دانلود دیتاشیت

سایر مستندات

LPC800 Series MCUs Brochure 2 pages

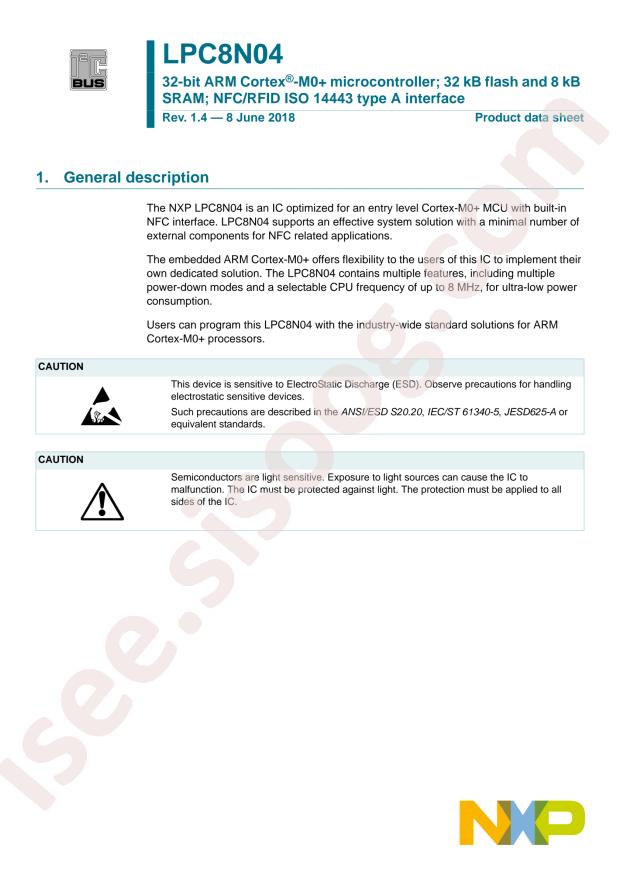

LPC8N04 Datasheet 39 pages

LPC8N04 Errata 6 pages

مشخصات فنی

  • RoHS: true
  • EEPROM: -
  • CPU Core: ARM Cortex-M0
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 8KB
  • Watchdog: -
  • ADC (Bit): -
  • DAC (Bit): -
  • Datasheet: NXP Semicon LPC8N04FHI24Z
  • PWM (Bit): -
  • Real-Time Clock: -
  • CPU Maximum Speed: 8MHz
  • GPIO Ports Number: 12
  • Low-Voltage Detect: -
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: PWM
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 32KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 1.72V~3.6V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: QFN-24-EP(4x4)
  • Manufacturer: NXP Semicon
  • Series: LPC8Nxx
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Core Processor: ARM® Cortex®-M0+
  • Core Size: 32-Bit
  • Speed: 8MHz
  • Connectivity: I²C, SPI
  • Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
  • Number of I/O: 12
  • Program Memory Size: 32KB (32K x 8)
  • EEPROM Size: 4K x 8
  • Voltage - Supply (Vcc/Vdd): 1.72V ~ 3.6V
  • Data Converters: -
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 24-VFQFN Exposed Pad
  • Supplier Device Package: 24-HVQFN (4x4)
  • Base Part Number: LPC8N
  • detail: ARM® Cortex®-M0+ LPC8Nxx Microcontroller IC 32-Bit 8MHz 32KB (32K x 8) FLASH 24-HVQFN (4x4)
