SA602AD/01,118 Datasheet

SA602A

Datasheet specifications

Datasheet's name SA602A
File size 1497.058 KB
File type pdf
Number of pages 19

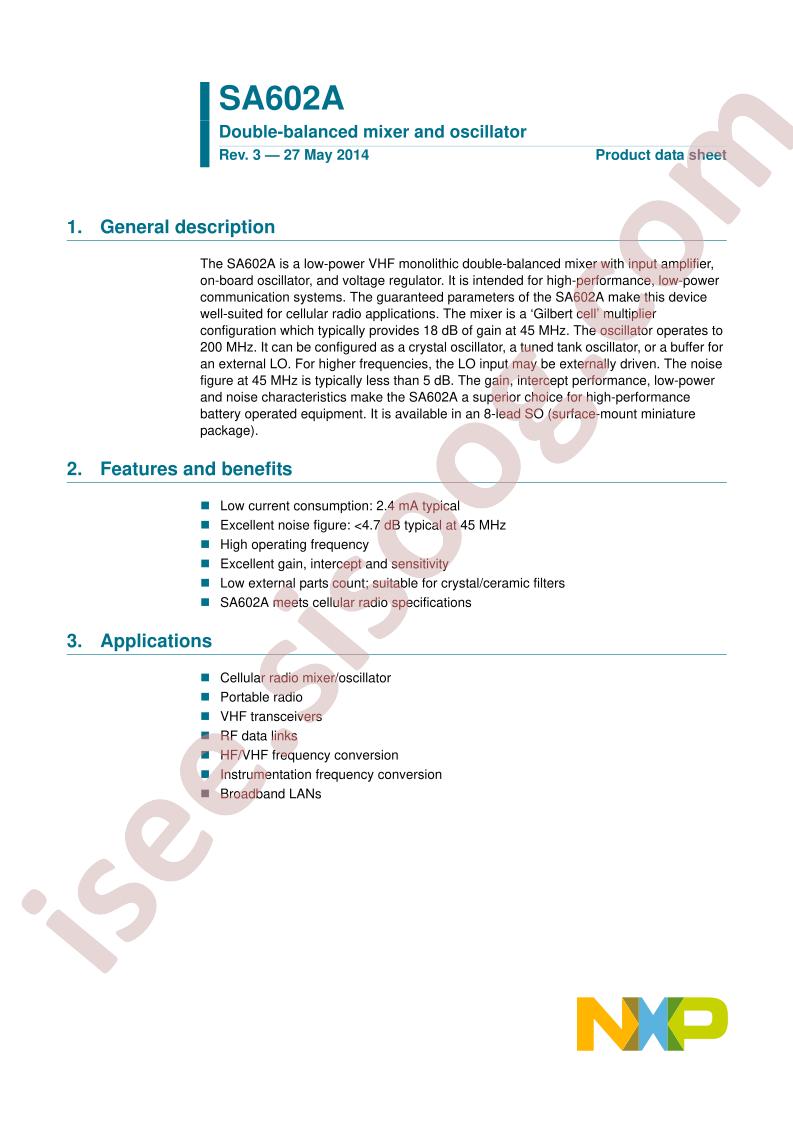

Download Datasheet SA602A

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Gain: 17dB
  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Mixers
  • Datasheet: NXP Semicon SA602AD/01,118
  • Applications: Cellular,HF,UHF,VHF
  • Noise Figure: 5dB
  • Supply Current: 2.4mA
  • Supply Voltage: 4.5V~8V
  • Frequency Range: 500MHz
  • Operating Temperature: -
  • Package: SOP-8
  • Manufacturer: NXP Semicon
  • Series: SA602
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • RF Type: Cellular, HF, UHF, VHF
  • Frequency: 500MHz
  • Number of Mixers: 1
  • Secondary Attributes: Up Converter
  • Current - Supply: 2.4mA
  • Voltage - Supply: 4.5V ~ 8V
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SO
  • Base Part Number: SA602
  • detail: RF Mixer IC Cellular, HF, UHF, VHF Up Converter 500MHz 8-SO
