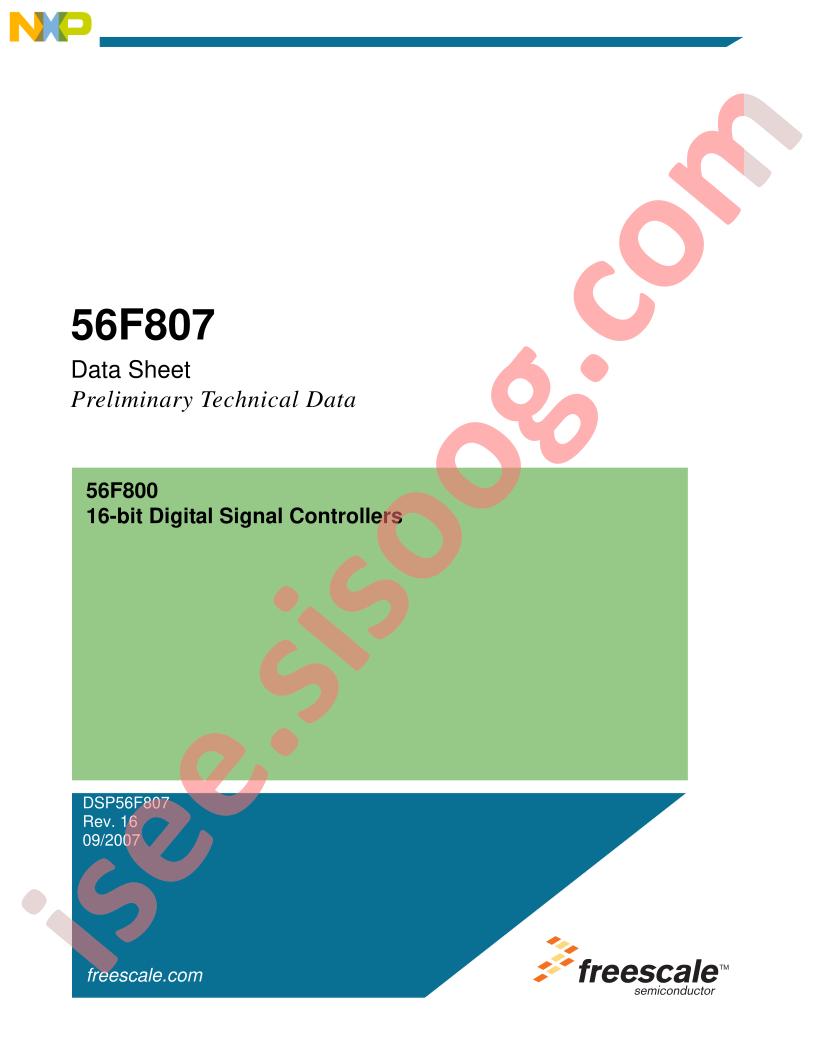

DSP56F807 دیتاشیت

DSP56F807

مشخصات دیتاشیت

نام دیتاشیت DSP56F807
حجم فایل 985.532 کیلوبایت
نوع فایل pdf
تعداد صفحات 60

مشاهده دیتاشیت DSP56F807

دانلود دیتاشیت

سایر مستندات

DSP56F807VF80E 60 pages

مشخصات فنی

  • RoHS: true
  • EEPROM: -
  • CPU Core: Other series
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: -
  • Watchdog: -
  • ADC (Bit): 12bit
  • DAC (Bit): -
  • Datasheet: NXP Semicon DSP56F807VF80E
  • PWM (Bit): -
  • Real-Time Clock: -
  • CPU Maximum Speed: 80MHz
  • GPIO Ports Number: 32
  • Low-Voltage Detect: -
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: WDT
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 60KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 3V~3.6V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: MAPBGA-160
  • Manufacturer: NXP Semicon
  • Series: 56F8xx
  • Packaging: Tray
  • Part Status: Obsolete
  • Core Processor: 56800
  • Core Size: 16-Bit
  • Speed: 80MHz
  • Connectivity: CANbus, EBI/EMI, SCI, SPI
  • Peripherals: POR, PWM, WDT
  • Number of I/O: 32
  • Program Memory Size: 120KB (60K x 16)
  • EEPROM Size: -
  • Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V
  • Data Converters: A/D 16x12b
  • Oscillator Type: External
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 160-BGA
  • Supplier Device Package: 160-MAPBGA (15x15)
  • Base Part Number: DSP56
  • detail: 56800 56F8xx Microcontroller IC 16-Bit 80MHz 120KB (60K x 16) FLASH 160-MAPBGA (15x15)
