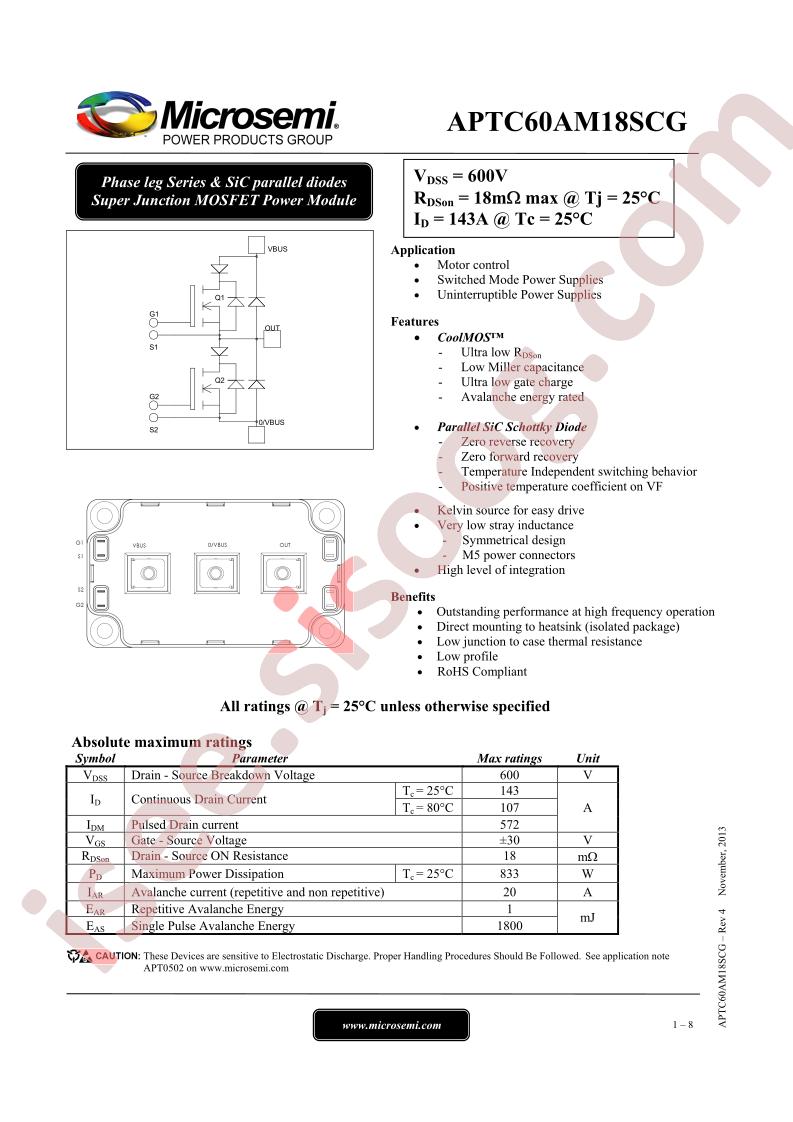

مشاهده دیتاشیت APTC60AM18SCG	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: CoolMOS™
Packaging: Bulk
Part Status: Active
FET Type: 2 N-Channel (Half Bridge)
FET Feature: Standard
Drain to Source Voltage (Vdss): 600V
Current - Continuous Drain (Id) @ 25°C: 143A
Rds On (Max) @ Id, Vgs: 18mOhm @ 71.5A, 10V
Vgs(th) (Max) @ Id: 3.9V @ 4mA
Gate Charge (Qg) (Max) @ Vgs: 1036nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 28000pF @ 25V
Power - Max: 833W
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6

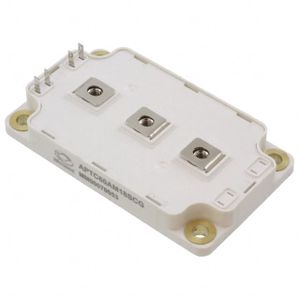

detail: Mosfet Array 2 N-Channel (Half Bridge) 600V 143A 833W Chassis Mount SP6
