LM3578AN/NOPB دیتاشیت

مشخصات دیتاشیت

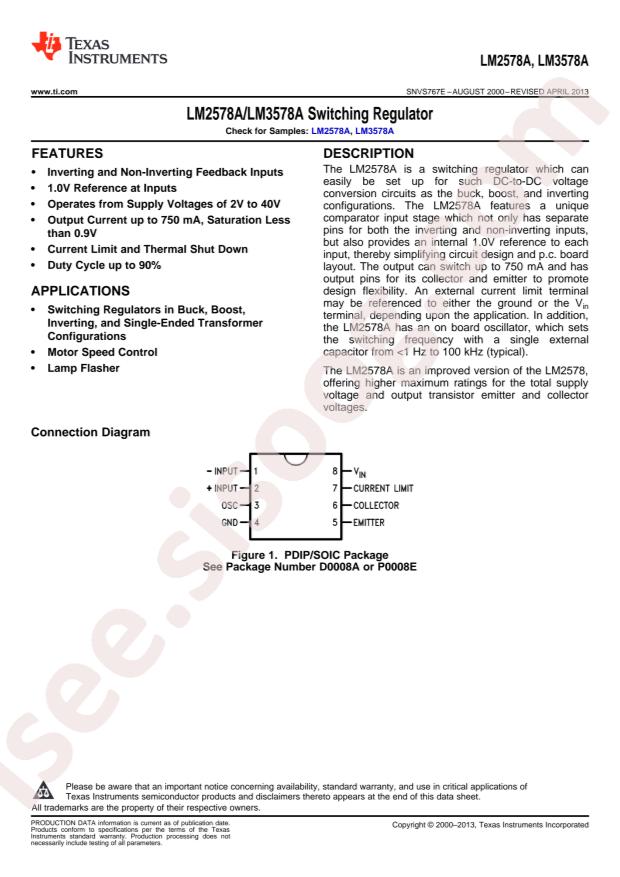

دانلود دیتاشیت LM3578AN/NOPB	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType;Step-down type;Buck-boost type
Topology: Step-down;Boost;Step-down-Boost
Datasheet: Texas Instruments LM3578AN/NOPB
Output Type: -
Input Voltage: 2V~40V
Number of Outputs: 1
Switching Frequency: 20kHz
Output Current (Max): 750mA
Operating Temperature: 0°C~+70°C@(TA)
Synchronous Rectification: NO
Package: DIP-8
Manufacturer: Texas Instruments
Package / Case: 8-DIP (0.300", 7.62mm)
Output Configuration: Positive or Negative
Base Part Number: LM3578
Packaging: Tube
Frequency - Switching: 20kHz
Supplier Device Package: 8-PDIP
Part Status: Active
Current - Output: 750mA (Switch)
Series: -
Voltage - Input (Max): 40V
Synchronous Rectifier: No
Voltage - Output (Min/Fixed): -
Voltage - Input (Min): 2V
Mounting Type: Through Hole
Voltage - Output (Max): -
detail: Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative 1 Output 750mA (Switch) 8-DIP (0.300", 7.62mm)
