LM26CIM5-ZHA/NOPB Datasheet

LM26 Datasheet

Datasheet specifications

Datasheet's name LM26 Datasheet
File size 1157.386 KB
File type pdf
Number of pages 25

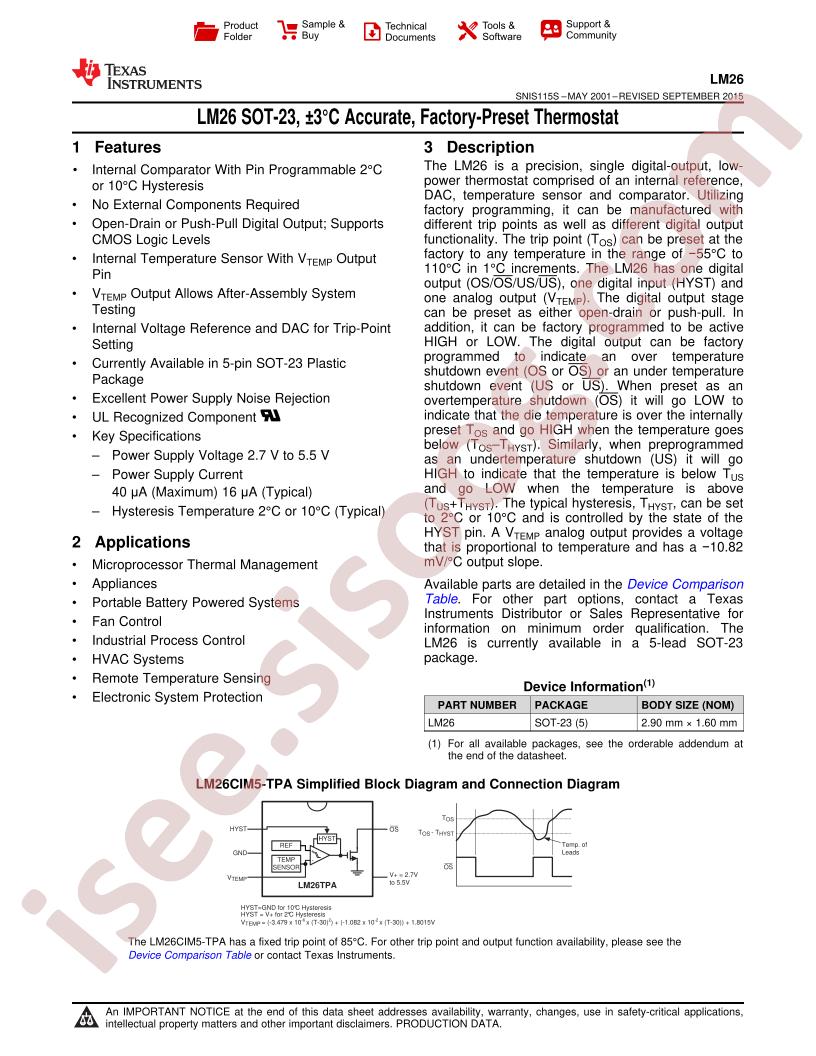

Download Datasheet LM26 Datasheet

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Supplier Device Package: SOT-23-5
  • Output: Active Low
  • Base Part Number: LM26
  • Operating Temperature: -55°C ~ 125°C
  • Output Function: /OverTemp
  • Package / Case: SC-74A, SOT-753
  • Current - Supply: 16µA
  • Trip Temperature Threshold: Hot
  • Features: -
  • Part Status: Active
  • Accuracy: ±4°C
  • Series: -
  • Manufacturer: Texas Instruments
  • Switching Temperature: 120°C
  • Mounting Type: Surface Mount
  • Current - Output (Max): -
  • Selectable Hysteresis: Yes
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 2.7V ~ 5.5V
  • Output Type: Open Drain
  • detail: Thermostat 120°C Active Low Open Drain SOT-23-5
