LP5521YQ/NOPB دیتاشیت

مشخصات دیتاشیت

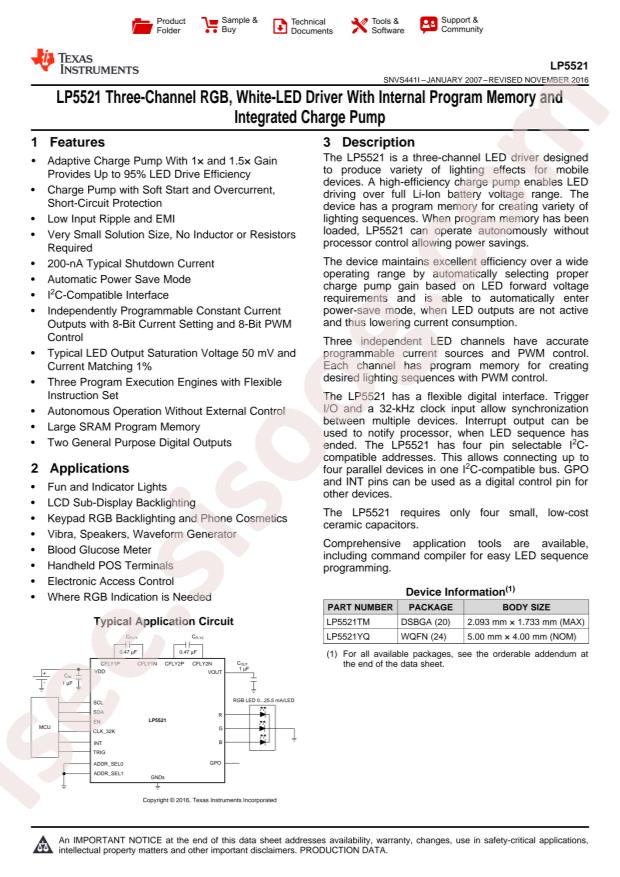

مشاهده دیتاشیت LP5521YQ/NOPB	دانلود دیتاشیت

LP5521 51 pages

RoHS: true
Category: Nixie Tube Driver/LED Driver/LED Drivers
Datasheet: Texas Instruments LP5521YQ/NOPB
Package: QFN-24-EP(4x5)
Manufacturer: Texas Instruments
Frequency: 1.25MHz
Dimming: I²C
Internal Switch(s): Yes
Topology: Switched Capacitor (Charge Pump)
Voltage - Output: 4.55V
Base Part Number: LP5521
Type: DC DC Regulator
Package / Case: 24-VFQFN Exposed Pad
Supplier Device Package: 24-WQFN (5x4)
Mounting Type: Surface Mount
Part Status: Active
Voltage - Supply (Max): 5.5V
Number of Outputs: 3
Voltage - Supply (Min): 2.7V
Current - Output / Channel: 25.5mA
Series: -
Packaging: Cut Tape (CT)
Operating Temperature: -30°C ~ 85°C (TA)
Applications: Backlight
detail: LED Driver IC 3 Output DC DC Regulator Switched Capacitor (Charge Pump) I²C Dimming 25.5mA 24-WQFN (5x4)
