TPS62056DGSR 数据手册
其他文档
TPS62050/51/52/54/56 30 pages
TPS62050-52,54,56 30 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down

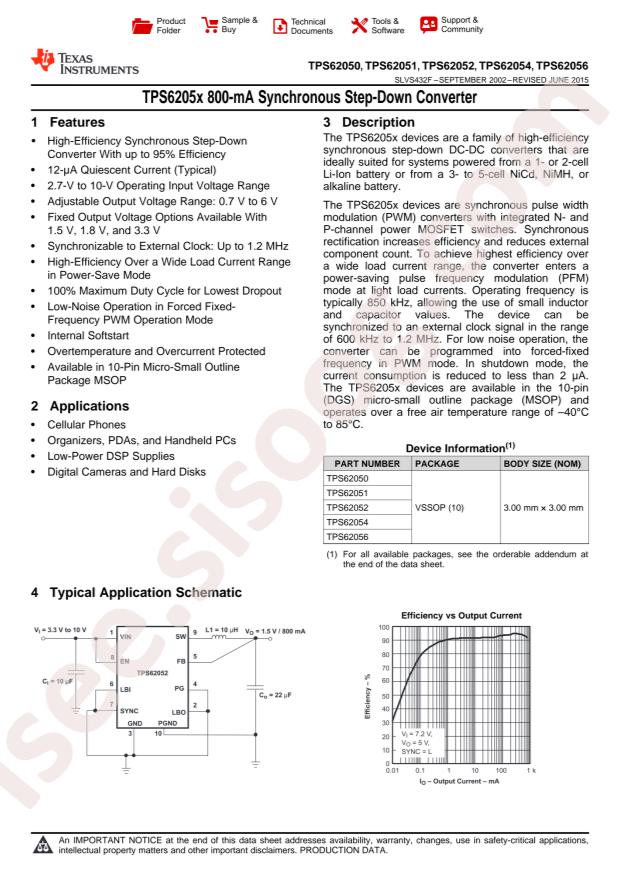

- Datasheet: Texas Instruments TPS62056DGSR
- Output Type: Fixed
- Input Voltage: 2.7V~10V
- Output Voltage: 3.3V
- Number of Outputs: 1
- Switching Frequency: 850kHz
- Output Current (Max): 800mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: VSSOP-10-0.5mm
- Manufacturer: Texas Instruments
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Output Configuration: Positive
- Base Part Number: TPS620
- Packaging: Cut Tape (CT)
- Frequency - Switching: 850kHz
- Supplier Device Package: 10-VSSOP
- Part Status: Active
- Current - Output: 800mA
- Series: -
- Voltage - Input (Max): 10V
- Synchronous Rectifier: Yes
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Input (Min): 2.7V
- Mounting Type: Surface Mount
- Voltage - Output (Max): -
- detail: Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 800mA 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
