TPS61030RSAR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS61030RSAR
|
|
حجم فایل
|
108.289
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
28
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType
-
Topology:
Boost
-
Datasheet:

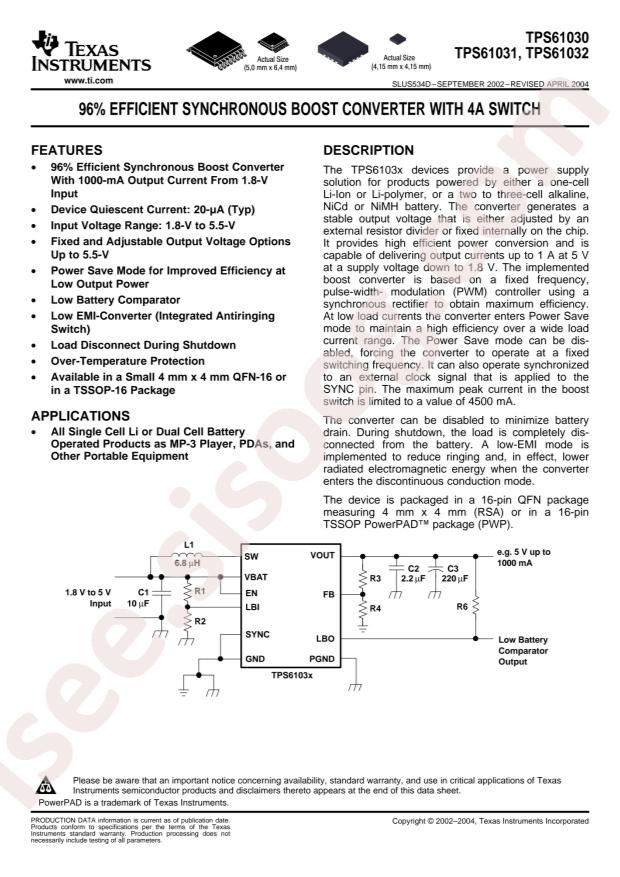

Texas Instruments TPS61030RSAR
-
Output Type:
Adjustable
-
Input Voltage:
1.8V~5.5V
-
Output Voltage:
1.8V~5.5V
-
Number of Outputs:
1
-
Switching Frequency:
600kHz
-
Output Current (Max):
3.6A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
QFN-16-EP(4x4)
-
Manufacturer:
Texas Instruments
-
Package / Case:
16-VQFN Exposed Pad
-
Output Configuration:
Positive
-
Base Part Number:
TPS610
-
Packaging:
Cut Tape (CT)
-
Frequency - Switching:
600kHz
-
Supplier Device Package:
16-QFN (4x4)
-
Part Status:
Active
-
Current - Output:
3.6A (Switch)
-
Series:
-
-
Voltage - Input (Max):
5.5V
-
Synchronous Rectifier:
Yes
-
Voltage - Output (Min/Fixed):
1.8V
-
Voltage - Input (Min):
1.8V
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
5.5V
-
detail:
Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 3.6A (Switch) 16-VQFN Exposed Pad
