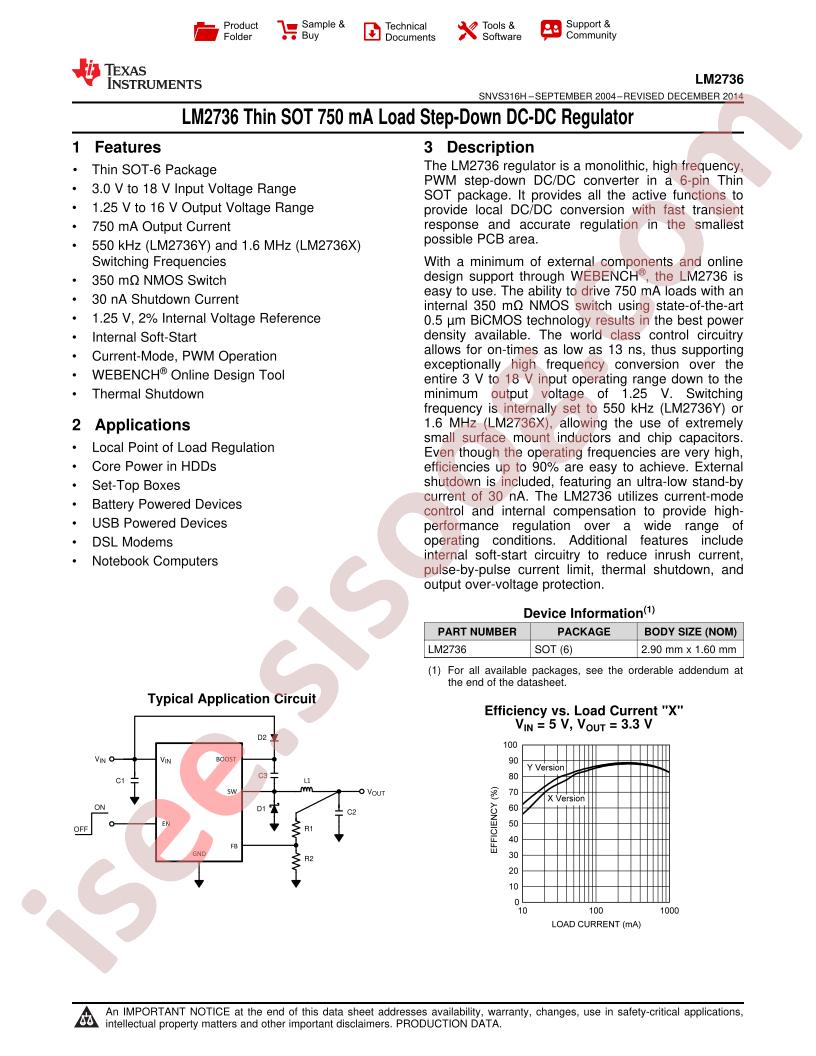

دیتاشیت LM2736YMK/NOPB
مشخصات دیتاشیت
| نام دیتاشیت |
LM2736
|
| حجم فایل |
1663.869
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
37
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments LM2736YMK/NOPB
-
Output Type:
Adjustable
-
Input Voltage:
3V~18V
-
Output Voltage:
1.25V~16V
-
Number of Outputs:
1
-
Switching Frequency:
550kHz
-
Output Current (Max):
750mA
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
SOT-23-6
-
Manufacturer:
Texas Instruments
-
Package / Case:
SOT-23-6 Thin, TSOT-23-6
-
Output Configuration:
Positive
-
Base Part Number:
LM2736
-
Packaging:
Cut Tape (CT)
-
Frequency - Switching:
550kHz
-
Supplier Device Package:
TSOT-23-6
-
Part Status:
Active
-
Current - Output:
750mA
-
Series:
-
-
Voltage - Input (Max):
18V
-
Synchronous Rectifier:
No
-
Voltage - Output (Min/Fixed):
1.25V
-
Voltage - Input (Min):
3V
-
Mounting Type:
Surface Mount
-
Voltage - Output (Max):
16V
-
detail:
Buck Switching Regulator IC Positive Adjustable 1.25V 1 Output 750mA SOT-23-6 Thin, TSOT-23-6
