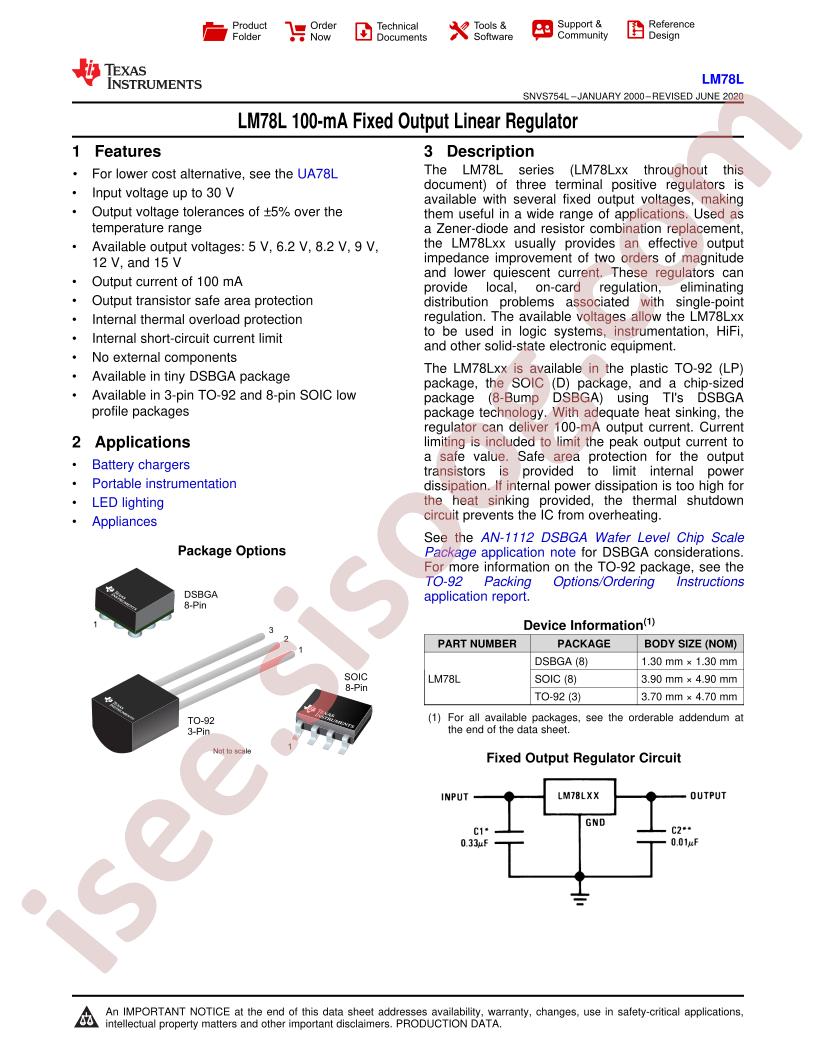

LM78Lxx Datasheet دیتاشیت

LM78Lxx Datasheet

مشخصات دیتاشیت

نام دیتاشیت LM78Lxx Datasheet
حجم فایل 1905.246 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت LM78Lxx Datasheet

دانلود دیتاشیت

سایر مستندات

LM78L12ACZ/NOPB 35 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments LM78L15ACMX/NOPB
  • Output Current: 100mA
  • Output Voltage: 15V
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 35V
  • Operating Temperature: 0°C~+125°C
  • Quiescent Current (Ground Current): 3mA
  • Power Supply Rejection Ratio (PSRR): 51dB@(120Hz)
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Protection Features: Over Temperature, Short Circuit
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Output Configuration: Positive
  • Current - Output: 100mA
  • Base Part Number: LM78L15
  • Control Features: -
  • Supplier Device Package: 8-SOIC
  • Part Status: Active
  • Voltage Dropout (Max): -
  • PSRR: 51dB (120Hz)
  • Series: -
  • Voltage - Input (Max): 35V
  • Number of Regulators: 1
  • Voltage - Output (Min/Fixed): 15V
  • Current - Quiescent (Iq): 3mA
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Voltage - Output (Max): -
  • Output Type: Fixed
  • detail: Linear Voltage Regulator IC 1 Output 100mA 8-SOIC
