LMV431AIMFX/NOPB Datasheet
Datasheet specifications
| Datasheet's name | LMV431AIMFX/NOPB |
|---|---|
| File size | 87.536 KB |
| File type | |
| Number of pages | 37 |
Download Datasheet LMV431AIMFX/NOPB |
Download Datasheet |
|---|
Other documentations
LMV431(A,B) 37 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Texas Instruments LMV431AIMFX/NOPB
- Tolerance: ±1%
- Output Type: Adjustable
- Input Voltage: -
- Output Current: 15mA
- Output Voltage: 1.24V~30V
- Reference Type: parallel connection
- Supply Current: -
- Dynamic Impedance: 0.25Ω
- Noise - 10Hz to 10kHz: -
- Operating Temperature: -40°C~+85°C@(Ta)
- Noise - 1/10Hz to 10Hz: -
- Temperature Coefficient: -
- Minimum Cathode Current for Regulation: 80uA

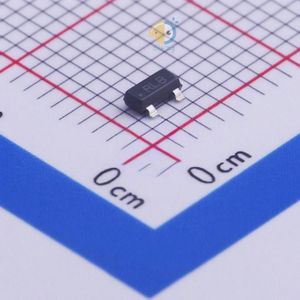

- Package: SOT-23-3
- Manufacturer: Texas Instruments
- Voltage - Input: -
- Base Part Number: LMV431
- Supplier Device Package: SOT-23-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Current - Supply: -
- Current - Cathode: 80µA
- Part Status: Active
- Current - Output: 15mA
- Series: -
- Noise - 0.1Hz to 10Hz: -
- Voltage - Output (Min/Fixed): 1.24V
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Voltage - Output (Max): 30V
- detail: Shunt Voltage Reference IC 30V ±1% SOT-23-3
