دیتاشیت TPS7A8400RGRT

مشخصات دیتاشیت

دانلود دیتاشیت TPS7A84 Datasheet	TPS7A84 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

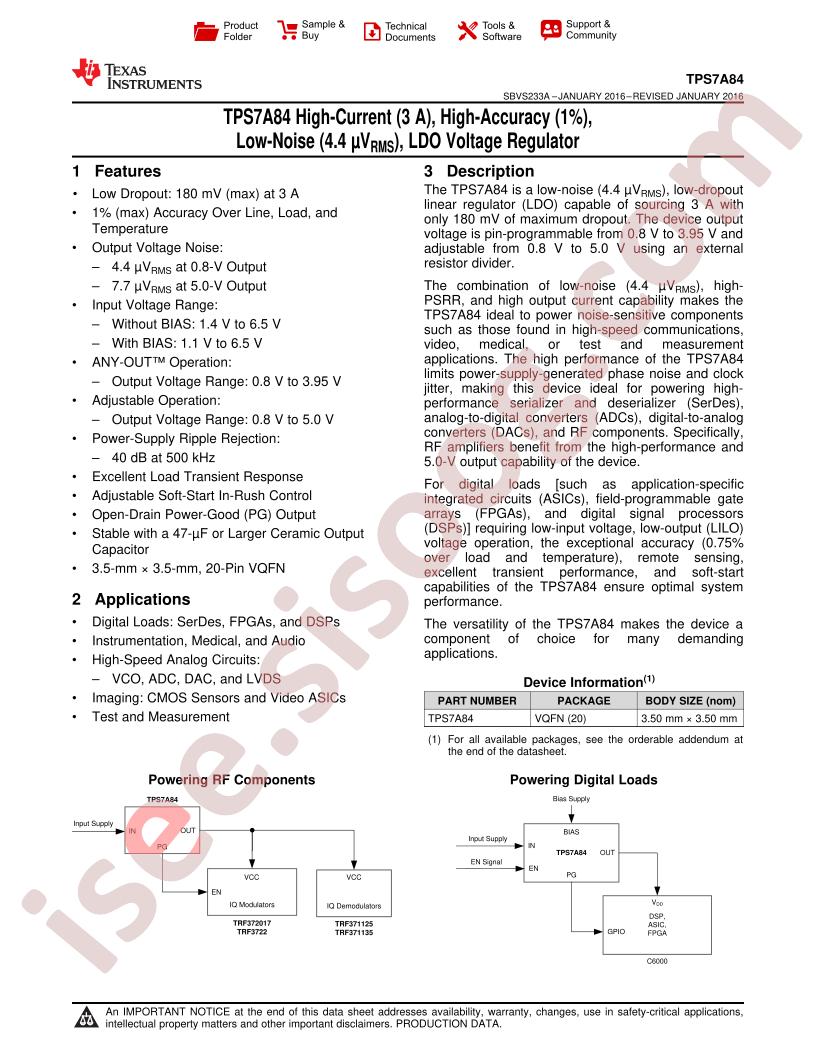

Datasheet: Texas Instruments TPS7A8400RGRT
Package: QFN-20-EP(4x4)
Manufacturer: Texas Instruments
Control Features: Enable, Power Good, Soft Start
Base Part Number: TPS7A8
Package / Case: 20-VFQFN Exposed Pad
Current - Supply (Max): 5.5mA
Part Status: Active
Current - Output: 3A
PSRR: 42dB ~ 25dB (10kHz ~ 500kHz)
Series: -
Voltage - Output (Min/Fixed): 0.8V
Mounting Type: Surface Mount
Number of Regulators: 1
Current - Quiescent (Iq): 4mA
Output Configuration: Positive
Voltage Dropout (Max): 0.34V @ 3A
Operating Temperature: -40°C ~ 125°C (TJ)
Supplier Device Package: 20-VQFN (3.5x3.5)
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Voltage - Input (Max): 6.5V
Output Type: Adjustable/Programmable
Packaging: Cut Tape (CT)
Voltage - Output (Max): 5V
detail: Linear Voltage Regulator IC 1 Output 3A 20-VQFN (3.5x3.5)
