TMS5700714APZQQ1 دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت TMS5700714APZQQ1	دانلود دیتاشیت

RoHS: true
CPU Core: ARM-RSeries
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
Watchdog: Yes
ADC (Bit): 12bit

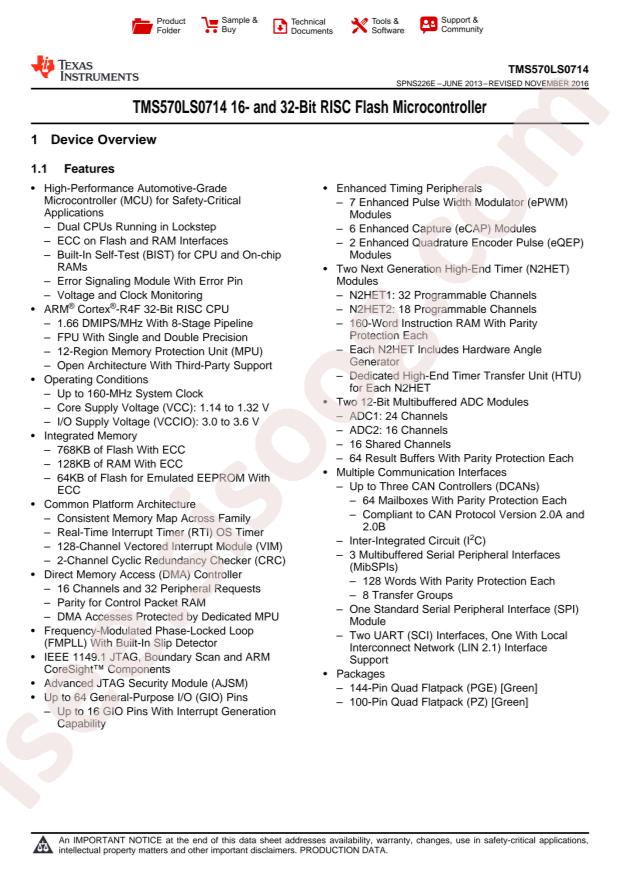

Datasheet: Texas Instruments TMS5700714APZQQ1
CPU Maximum Speed: 100MHz
GPIO Ports Number: 55
Low-Voltage Detect: Yes
Direct Memory Access: Yes
Program Storage Size: 768KB
Operating Voltage Range: 1.14V~3.6V
Operating Temperature Range: -40°C~+125°C
Package: LQFP-100(14x14)
Manufacturer: Texas Instruments
Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.6V
Speed: 100MHz
EEPROM Size: 64K x 8
Data Converters: A/D 16x12b
Base Part Number: TMS570
Package / Case: 100-LQFP
Program Memory Type: FLASH
Series: Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R
Number of I/O: 55
RAM Size: 128K x 8
Mounting Type: Surface Mount
Part Status: Active
Program Memory Size: 768KB (768K x 8)
Core Size: 32-Bit Dual-Core
Operating Temperature: -40°C ~ 125°C (TA)
Peripherals: DMA, POR, PWM, WDT
Supplier Device Package: 100-LQFP (14x14)
Oscillator Type: External
Core Processor: ARM® Cortex®-R4F
Connectivity: CANbus, I²C, LINbus, MibSPI, SCI, SPI, UART/USART
Packaging: Tray
detail: ARM® Cortex®-R4F Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R Microcontroller IC 32-Bit Dual-Core 100MHz 768KB (768K x 8) FLASH 100-LQFP (14x14)
