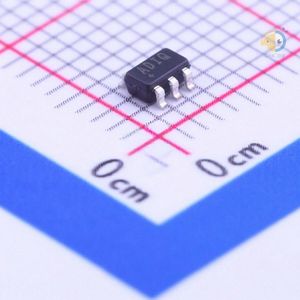

MAX917EUK+T دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت MAX917EUK+T	دانلود دیتاشیت

RoHS: true
Category: Operational Amplifier/Comparator/Comparators

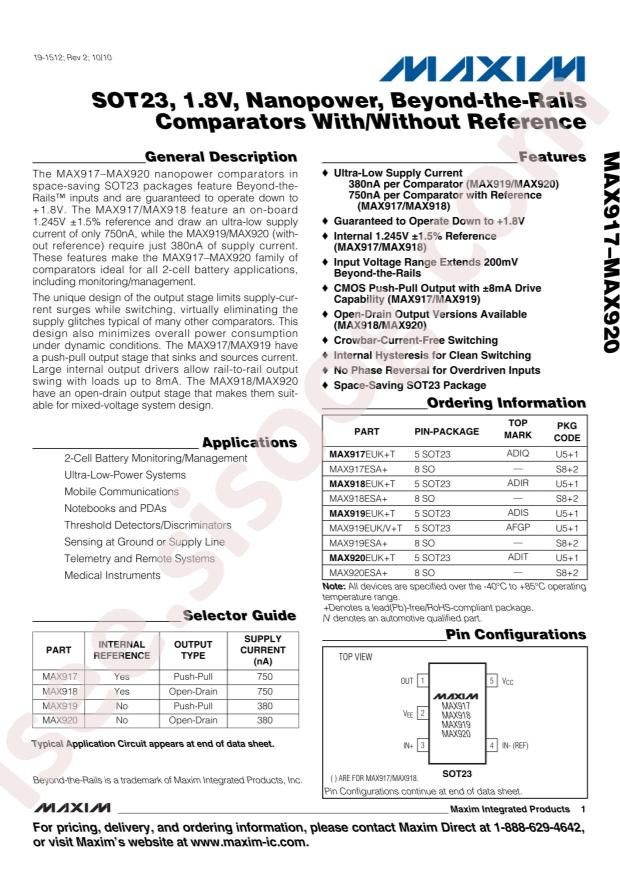

Datasheet: Analog Devices Inc./Maxim Integrated MAX917EUK+T
Output Type: 开集
Supply Current: 1.6uA
Supply Voltage: 1.8V~5.5V
Number of Elements: 1
Operating Temperature: -40°C~+85°C
Propagation Delay Time: 95us
Input Bias Current (Ib): 0.001uA
Input Offset Voltage (Vos): 5mV
Input Hysteresis Voltage (Vhys): 4mV
Common Mode Rejection Ratio (CMRR): -
Package: SOT-23-5
Manufacturer: Analog Devices Inc./Maxim Integrated
Voltage - Supply, Single/Dual (±): 1.8V ~ 5.5V
Voltage - Input Offset (Max): 5mV @ 5V
Hysteresis: 4mV
Supplier Device Package: SOT-23-5
CMRR, PSRR (Typ): 80dB PSRR
Propagation Delay (Max): 95µs
Part Status: Active
Type: with Voltage Reference
Series: Beyond-the-Rails™
Current - Quiescent (Max): 1.6µA
Base Part Number: MAX917
Current - Output (Typ): 50mA
Package / Case: SC-74A, SOT-753
Packaging: Cut Tape (CT)
Mounting Type: Surface Mount
Current - Input Bias (Max): 0.001µA @ 5V
detail: Comparator with Voltage Reference CMOS, Push-Pull, Rail-to-Rail, TTL SOT-23-5
