دیتاشیت MC9S12DG128VPVE

مشخصات دیتاشیت

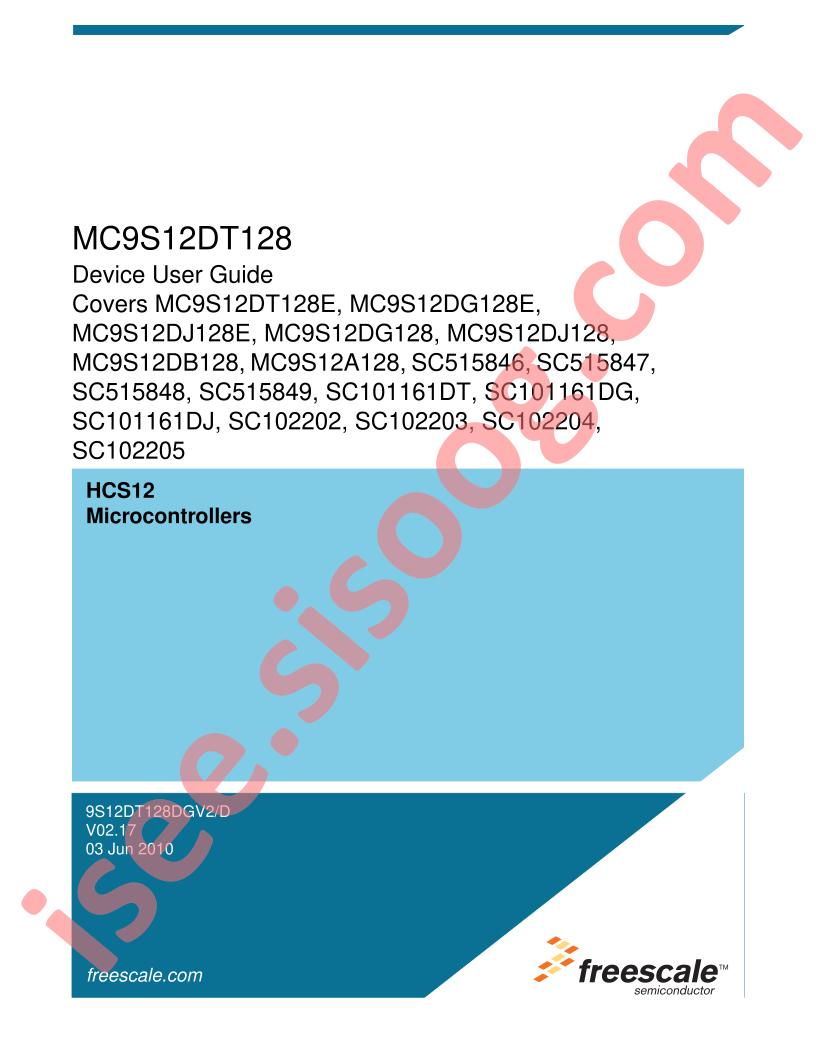

دانلود دیتاشیت MC9S12DT128 User Guide	MC9S12DT128 User Guide Datasheet

RoHS: true
EEPROM: -
CPU Core: Other series
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
RAM Size: 8KB
Watchdog: Yes
ADC (Bit): 10bit
DAC (Bit): -
Datasheet: NXP Semicon MC9S12DG128VPVE
PWM (Bit): -
Real-Time Clock: -
CPU Maximum Speed: 25MHz
GPIO Ports Number: 91
Low-Voltage Detect: -
CCP Capture/Compare: -
Internal Comparator: -
Internal Oscillator: Yes
Peripheral/Function: PWM;WDT
Program Memory Type: FLASH
Direct Memory Access: -
Program Storage Size: 128KB
Universal Serial Bus: -
communication protocol: -
Operating Voltage Range: 2.35V~5.25V
Infrared Data Association: -
Operating Temperature Range: -40°C~+105°C
Secure Digital Input and Output: -
Package: LQFP-112(20x20)
Manufacturer: NXP Semicon
Series: HCS12
Packaging: Tray
Part Status: Active
Core Processor: HCS12
Core Size: 16-Bit
Speed: 25MHz
Connectivity: CANbus, I²C, SCI, SPI
Peripherals: PWM, WDT
Number of I/O: 91
Program Memory Size: 128KB (128K x 8)
EEPROM Size: 2K x 8
Voltage - Supply (Vcc/Vdd): 2.35V ~ 5.25V
Data Converters: A/D 16x10b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 105°C (TA)
Mounting Type: Surface Mount
Package / Case: 112-LQFP
Supplier Device Package: 112-LQFP (20x20)
Base Part Number: MC9S1
detail: HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 112-LQFP (20x20)
