MC9S08PL60CQH دیتاشیت

مشخصات دیتاشیت

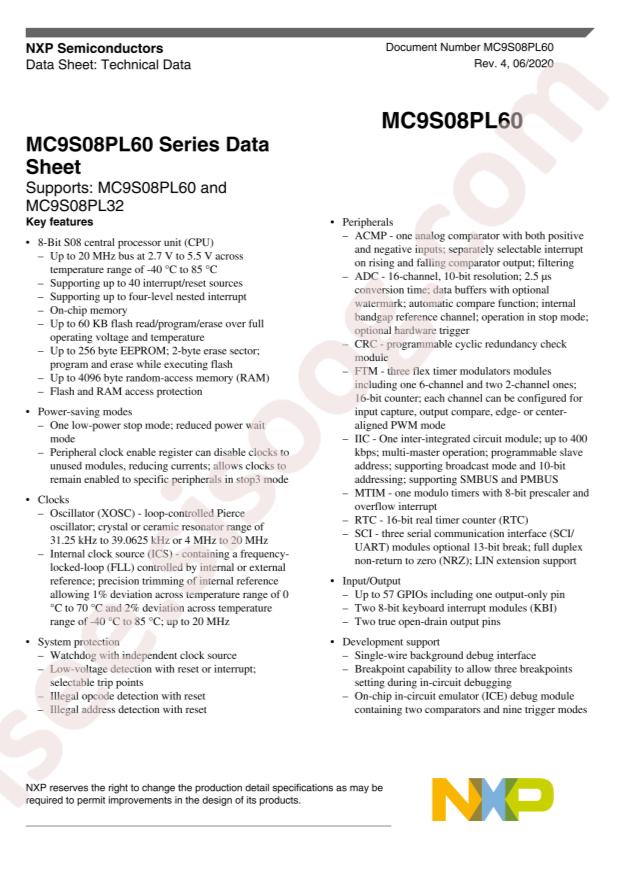

دانلود دیتاشیت MC9S08PL60CQH	دانلود دیتاشیت

RoHS: true
EEPROM: -
CPU Core: -
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
RAM Size: 4KB
Watchdog: -
ADC (Bit): 10bit
DAC (Bit): -
Datasheet: NXP Semicon MC9S08PL60CQH
PWM (Bit): -
Real-Time Clock: -
CPU Maximum Speed: 20MHz
GPIO Ports Number: 57
Low-Voltage Detect: -
CCP Capture/Compare: -
Internal Comparator: -
Internal Oscillator: Yes
Peripheral/Function: Low-VoltageDetect
Program Memory Type: FLASH
Direct Memory Access: -
Program Storage Size: 60KB
Universal Serial Bus: -
communication protocol: -
Operating Voltage Range: 2.7V~5.5V
Infrared Data Association: -
Operating Temperature Range: -40°C~+85°C
Secure Digital Input and Output: -
Package: LQFP-64(14x14)
Manufacturer: NXP Semicon
Series: S08
Part Status: Active
Core Processor: S08
Core Size: 8-Bit
Speed: 20MHz
Connectivity: LINbus, SCI, UART/USART
Peripherals: LVD, POR, PWM
Number of I/O: 57
Program Memory Size: 60KB (60K x 8)
EEPROM Size: 256 x 8
Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
Data Converters: A/D 16x10b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 64-QFP
Supplier Device Package: 64-QFP (14x14)
Base Part Number: MC9S0
detail: S08 S08 Microcontroller IC 8-Bit 20MHz 60KB (60K x 8) FLASH 64-QFP (14x14)
