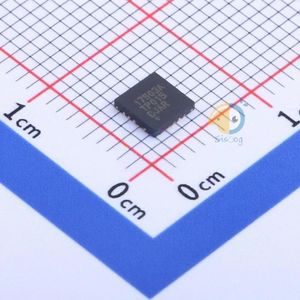

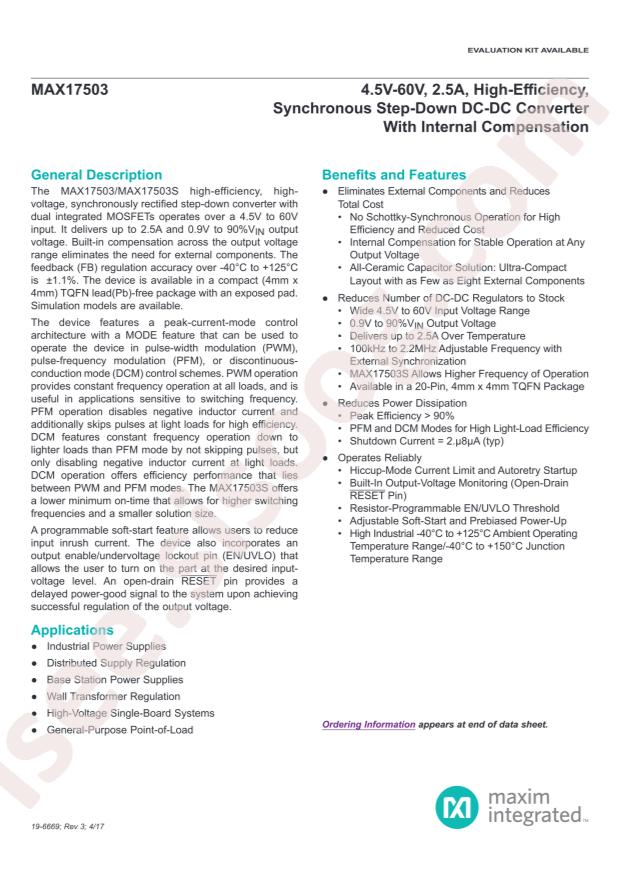

- دیتاشیت MAX17503ATP+T
MAX17503ATP+T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX17503ATP+T |
|---|---|
| حجم فایل | 98.063 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت MAX17503ATP+T |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
EE-Sim Design, Simulation Environment Guide 55 pages
MAX17503 27 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices Inc./Maxim Integrated MAX17503ATP+T
- Output Type: Adjustable
- Input Voltage: 4.5V~60V
- Output Voltage: 0.9V~54V
- Number of Outputs: 1
- Switching Frequency: 2.2MHz
- Output Current (Max): 2.5A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: QFN-20-EP(4x4)
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Voltage - Input (Max): 60V
- Voltage - Input (Min): 4.5V
- Output Configuration: Positive
- Supplier Device Package: 20-TQFN (4x4)
- Package / Case: 20-WFQFN Exposed Pad
- Frequency - Switching: 100kHz ~ 2.2MHz
- Current - Output: 2.5A
- Part Status: Active
- Series: Himalaya
- Voltage - Output (Max): 54V
- Base Part Number: MAX17503
- Mounting Type: Surface Mount
- Synchronous Rectifier: Yes
- Voltage - Output (Min/Fixed): 0.9V
- Packaging: Cut Tape (CT)
- detail: Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 2.5A 20-WFQFN Exposed Pad
