HV2803, HV2903, HV2904 Datasheet Datasheet

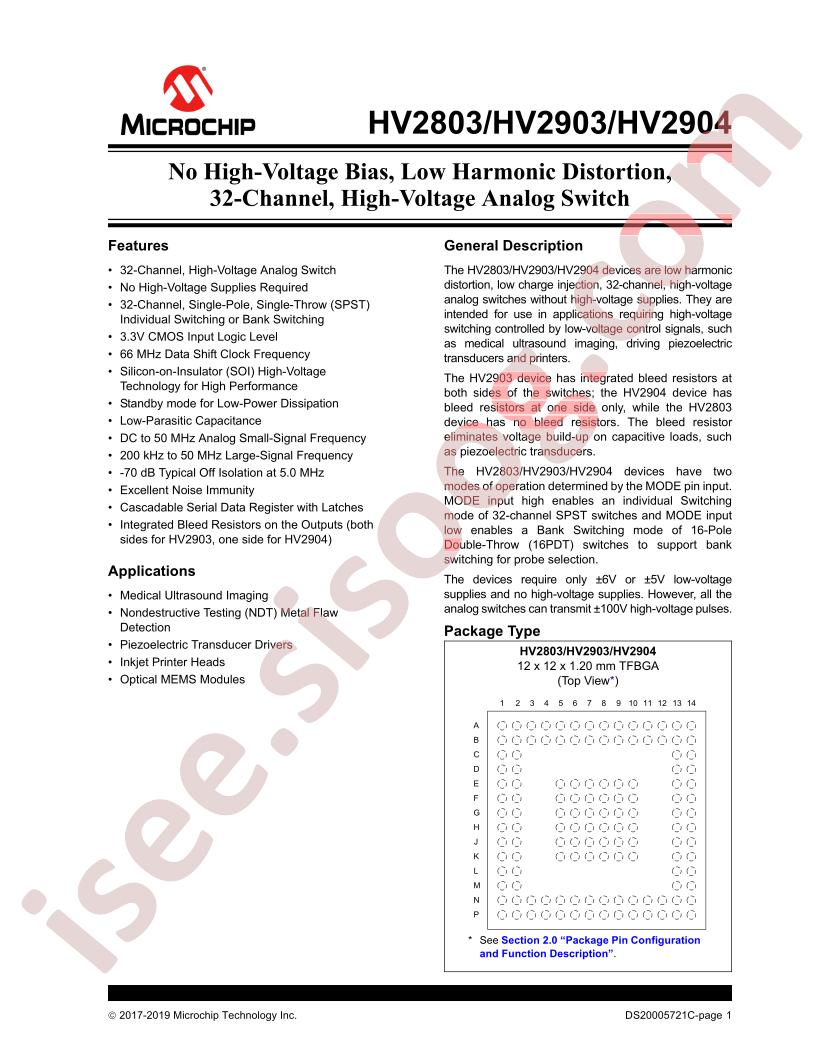

HV2803, HV2903, HV2904 Datasheet

Datasheet specifications

Datasheet's name HV2803, HV2903, HV2904 Datasheet
File size 779.476 KB
File type pdf
Number of pages 32

Download Datasheet HV2803, HV2903, HV2904 Datasheet

Download Datasheet

Other documentations

HV2803/AHA 32 pages

Technical specifications

  • RoHS: true
  • Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
  • Datasheet: Microchip Tech HV2904/AHA
  • Supply Voltage: 4.5V~6.3V
  • Switch Circuit: SPST(SPST)
  • Number of Channels: 32
  • Operating Temperature: 0°C~+70°C
  • On-State Resistance (Max): 15Ω
  • Package: TFBGA-132
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tray
  • Part Status: Active
  • Applications: Ultrasound
  • Multiplexer/Demultiplexer Circuit: 1:1
  • Voltage - Supply, Single (V+): -
  • Voltage - Supply, Dual (V±): ±4.5V ~ 6.3V
  • -3db Bandwidth: 50MHz
  • Features: -
  • Mounting Type: Surface Mount
  • Package / Case: 132-TFBGA, CSPBGA
  • Supplier Device Package: 132-TFBGA (12x12)
  • detail: Ultrasound Switch IC 32 Channel 132-TFBGA (12x12)
