دیتاشیت MAX961EUA+T
مشخصات دیتاشیت
| نام دیتاشیت | MAX961-64, 977, 999 |
|---|---|
| حجم فایل | 1737.179 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 13 |

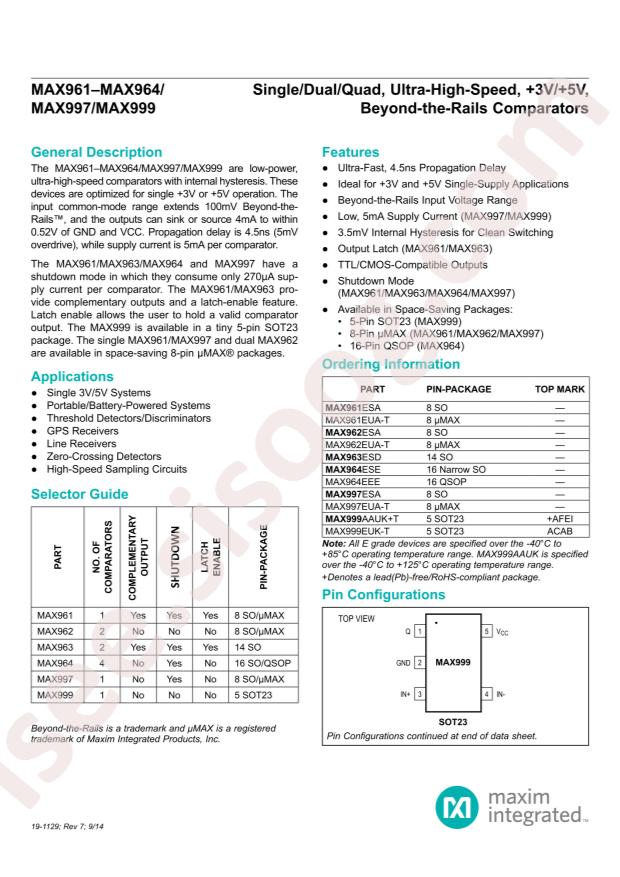

دانلود دیتاشیت MAX961-64, 977, 999 |
MAX961-64, 977, 999 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Analog Devices Inc./Maxim Integrated MAX961EUA+T
- Output Type: CMOS;互补;TTL
- Supply Voltage: 2.7V~5.5V
- Number of Elements: -
- Operating Temperature: -40°C~+85°C
- Input Bias Current (Ib): 15uA
- Input Offset Voltage (Vos): 1.5mV
- Input Hysteresis Voltage (Vhys): 3.5mV
- Common Mode Rejection Ratio (CMRR): 80dB
- Package: UMAX-8
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V
- Voltage - Input Offset (Max): 1.5mV @ 5V
- Hysteresis: 3.5mV
- Supplier Device Package: 8-uMAX
- CMRR, PSRR (Typ): 80dB CMRR, 86.02dB PSRR
- Propagation Delay (Max): 7ns
- Part Status: Active
- Type: General Purpose
- Series: Beyond-the-Rails™
- Current - Quiescent (Max): 11mA
- Base Part Number: MAX961
- Current - Output (Typ): -
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Current - Input Bias (Max): 15µA @ 5V
- detail: Comparator General Purpose CMOS, Complementary, TTL 8-uMAX
