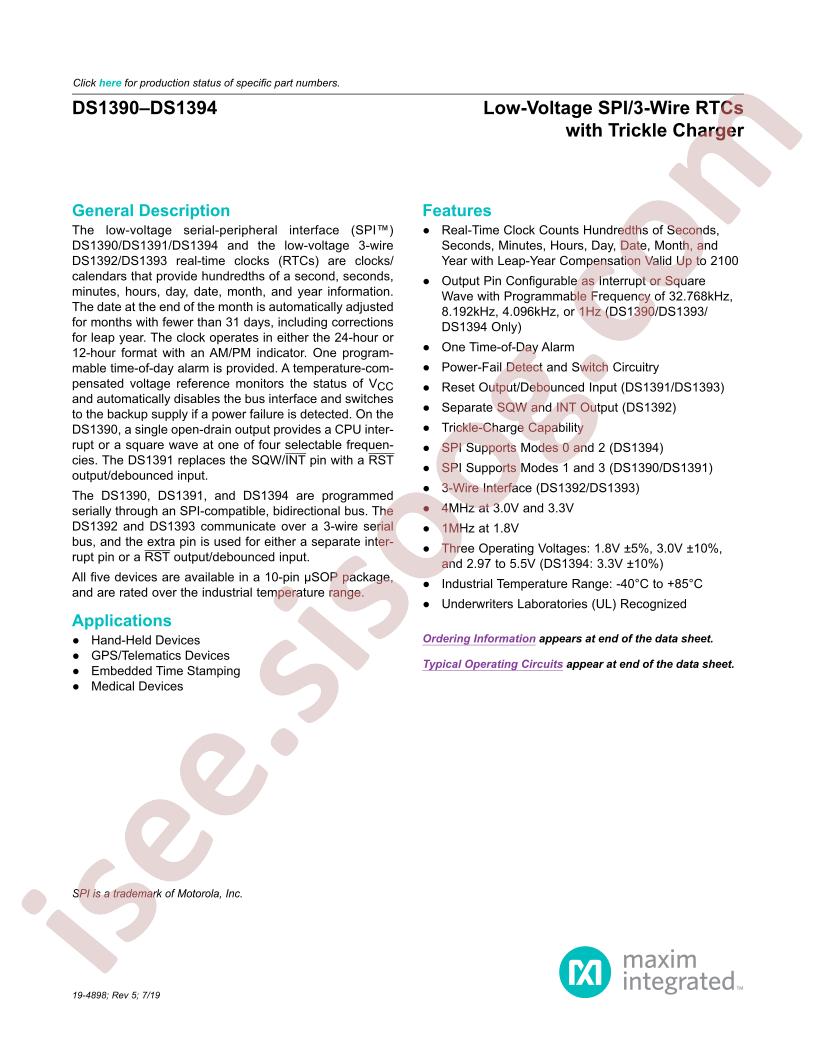

DS1393U-33+ Datasheet
Datasheet specifications
|
Datasheet's name
|
DS1393U-33+
|
|
File size
|
86.293
KB
|
|
File type
|
pdf
|
|
Number of pages
|
27
|
Technical specifications
-
RoHS:
true
-
Category:
RTC/Clock Chip/Real-time Clocks (RTC)
-
Datasheet:
Analog Devices Inc./Maxim Integrated DS1394U-33+T&R
-
Interface:
SPI
-
Operating Voltage:
2.97V~5.5V
-
Operating Temperature:
-40°C~+85°C
-

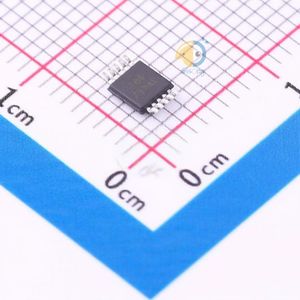

Package:
UMAX-10
-
Manufacturer:
Analog Devices Inc./Maxim Integrated
-
Features:
Alarm, Leap Year, Square Wave Output, Trickle-Charger
-
Supplier Device Package:
10-uMAX
-
Voltage - Supply, Battery:
1.3V ~ 5.5V
-
Date Format:
YY-MM-DD-dd
-
Memory Size:
-
-
Part Status:
Active
-
Type:
Clock/Calendar
-
Series:
-
-
Time Format:
HH:MM:SS:hh (12/24 hr)
-
Mounting Type:
Surface Mount
-
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
-
Current - Timekeeping (Max):
175µA @ 2.97V ~ 5.5V
-
Packaging:
Cut Tape (CT)
-
Voltage - Supply:
2.97V ~ 5.5V
-
Base Part Number:
DS1394
-
detail:
Real Time Clock (RTC) IC Clock/Calendar SPI 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
