دیتاشیت LPC2212FBD144/01,5
مشخصات دیتاشیت
| نام دیتاشیت | LPC221x |
|---|---|
| حجم فایل | 345.282 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 47 |
دانلود دیتاشیت LPC221x |

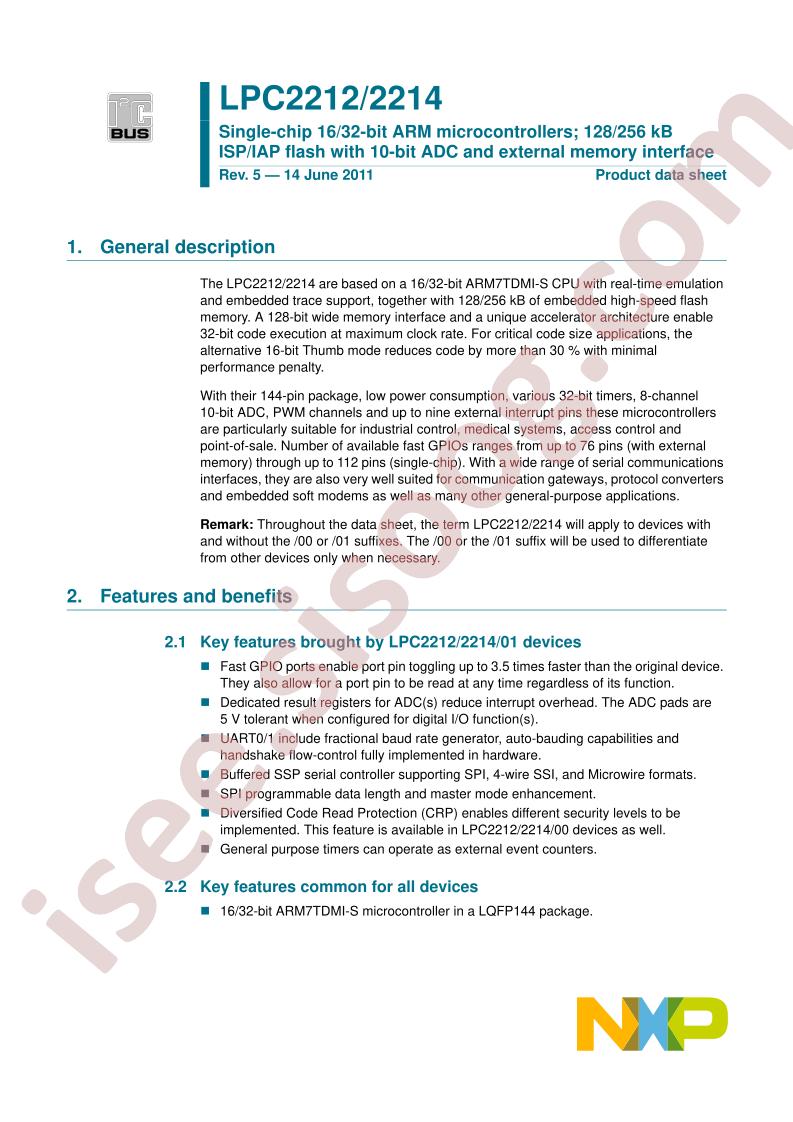

LPC221x Datasheet |
|---|
مشخصات
- Manufacturer: NXP USA Inc.
- Series: LPC2200
- Packaging: Tray
- Part Status: Not For New Designs
- Core Processor: ARM7®
- Core Size: 16/32-Bit
- Speed: 60MHz
- Connectivity: EBI/EMI, I²C, Microwire, SPI, SSI, SSP, UART/USART
- Peripherals: POR, PWM, WDT
- Number of I/O: 112
- Program Memory Size: 128KB (128K x 8)
- Program Memory Type: FLASH
- EEPROM Size: -
- RAM Size: 16K x 8
- Voltage - Supply (Vcc/Vdd): 1.65V ~ 1.95V
- Data Converters: A/D 8x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 144-LQFP
- Supplier Device Package: 144-LQFP (20x20)
- Base Part Number: LPC22
- detail: ARM7® LPC2200 Microcontroller IC 16/32-Bit 60MHz 128KB (128K x 8) FLASH 144-LQFP (20x20)
