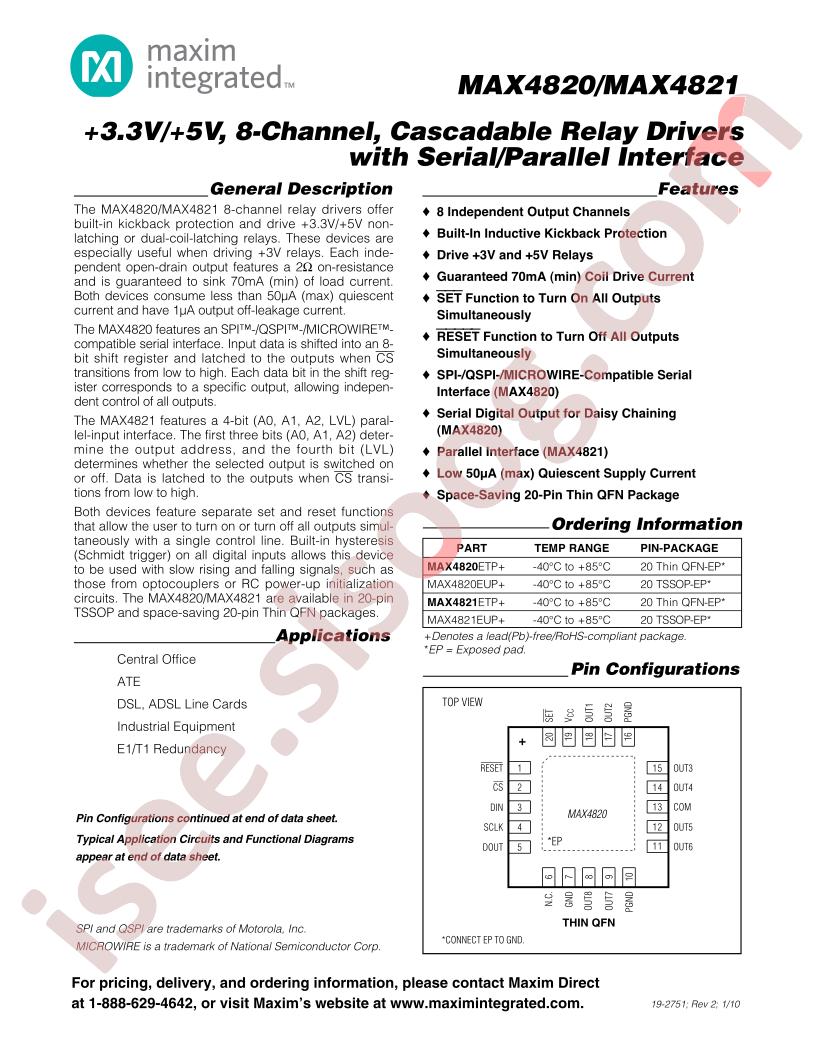

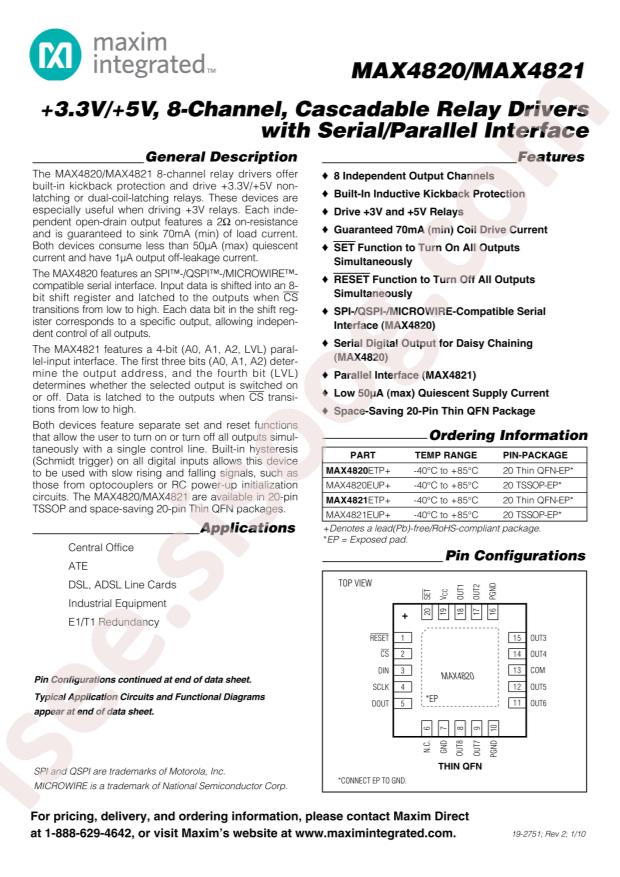

دیتاشیت MAX4820EUP+T
مشخصات دیتاشیت
| نام دیتاشیت |
MAX4820-21
|
| حجم فایل |
368.564
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
-
Datasheet:
Analog Devices Inc./Maxim Integrated MAX4820EUP+T
-
Package:
TSSOP-20
-
Manufacturer:
Analog Devices Inc./Maxim Integrated
-
Ratio - Input:Output:
1:8
-
Rds On (Typ):
2Ohm
-
Output Configuration:
Low Side
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
20-TSSOP-EP
-
Switch Type:
Relay, Solenoid Driver
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width) Exposed Pad
-
Packaging:
Cut Tape (CT)
-
Voltage - Load:
2.3V ~ 5.5V
-
Number of Outputs:
8
-
Features:
-
-
Input Type:
-
-
Part Status:
Active
-
Fault Protection:
-
-
Output Type:
N-Channel
-
Series:
-
-
Interface:
SPI
-
Current - Output (Max):
70mA
-
Base Part Number:
MAX4820
-
Voltage - Supply (Vcc/Vdd):
-
-
detail:
Power Switch/Driver 1:8 N-Channel 70mA 20-TSSOP-EP
