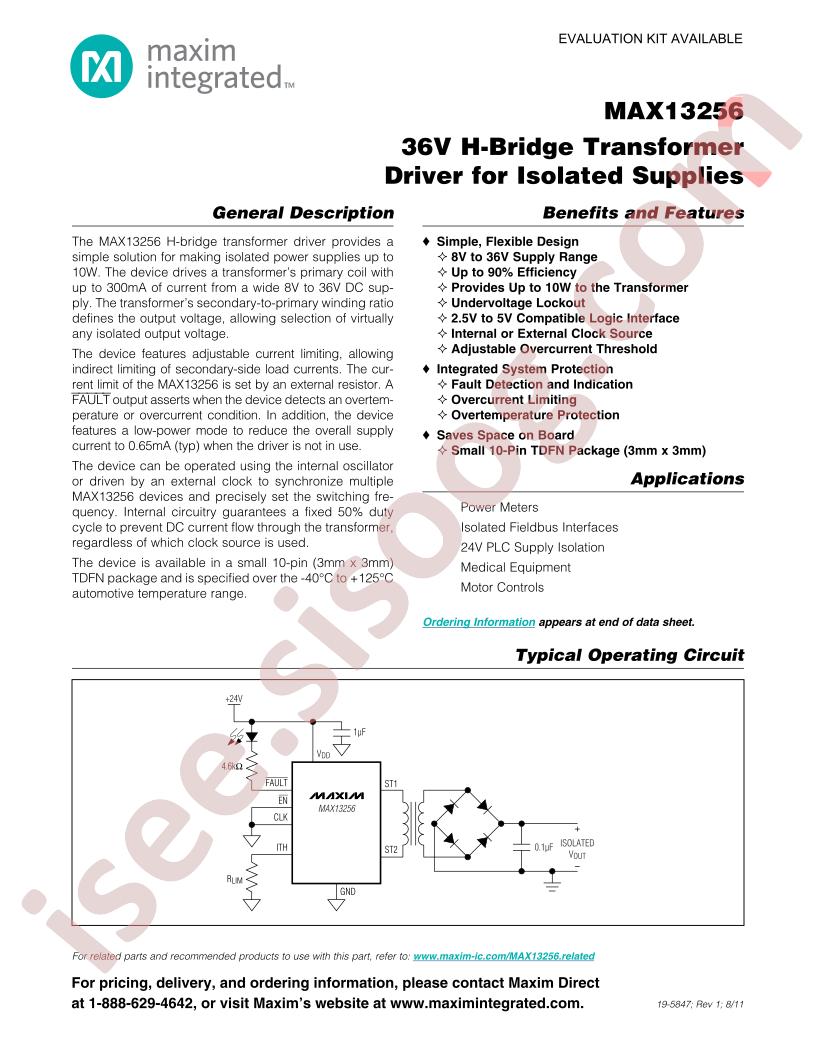

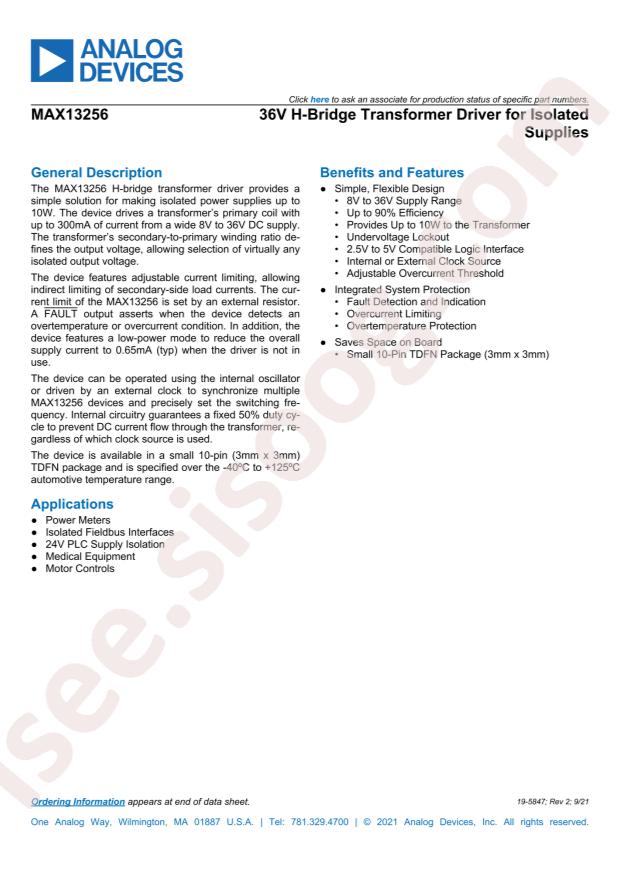

MAX13256ATB+T دیتاشیت

MAX13256ATB+T

مشخصات دیتاشیت

نام دیتاشیت MAX13256ATB+T
حجم فایل 73.706 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت MAX13256ATB+T

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX13256 17 pages

Corona (MAXREFDES12#) 6 pages

Corona (MAXREFDES12#) ZedBoard QS Guide 19 pages

Corona (MAXREFDES12#) Nexys 3 QS Guide 19 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX13256ATB+T
  • Load Type: MOSFET
  • Supply Voltage: 8V~36V
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: DFN-10(3x3)
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Applications: Transformers
  • Fault Protection: Current Limiting, Over Temperature, UVLO
  • Features: Internal Oscillator, Status Flag, Watchdog Timer
  • Supplier Device Package: 10-TDFN-EP (3x3)
  • Rds On (Typ): 600mOhm LS, 1Ohm HS
  • Output Configuration: Half Bridge (2)
  • Current - Output / Channel: 850mA
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Series: -
  • Interface: Logic
  • Base Part Number: MAX13256
  • Voltage - Load: 8V ~ 36V
  • Package / Case: 10-WFDFN Exposed Pad
  • Technology: Power MOSFET
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 8V ~ 36V
  • Current - Peak Output: -
  • detail: Half Bridge (2) Driver Transformers Power MOSFET 10-TDFN-EP (3x3)
