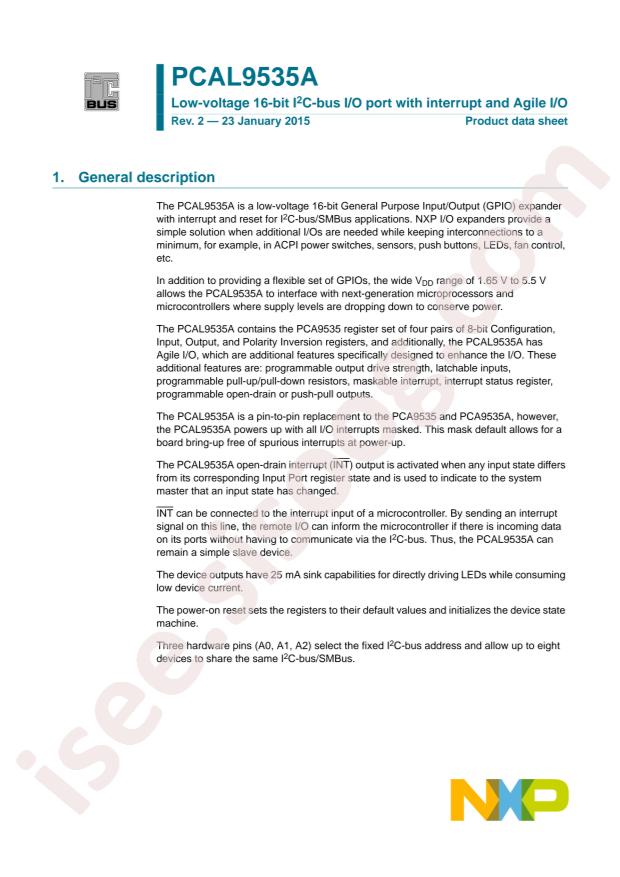

دیتاشیت PCAL9535AHF,128

PCAL9535A

مشخصات دیتاشیت

نام دیتاشیت PCAL9535A
حجم فایل 2659.042 کیلوبایت
نوع فایل pdf
تعداد صفحات 46

دانلود دیتاشیت PCAL9535A

PCAL9535A Datasheet

مشخصات

  • RoHS: true
  • Category: Communication Interface Chip/UART/485/232/I/O Expanders
  • Datasheet: NXP Semicon PCAL9535AHF,128
  • Interface: -
  • Output Type: -
  • Interrupt Output: -
  • Package: HWQFN-24-EP(4x4)
  • Manufacturer: NXP Semicon
  • Series: Agile
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Number of I/O: 16
  • Features: POR
  • Current - Output Source/Sink: 10mA, 25mA
  • Clock Frequency: 400kHz
  • Voltage - Supply: 1.65V ~ 5.5V
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 24-WFQFN Exposed Pad
  • Supplier Device Package: 24-HWQFN (4x4)
  • Base Part Number: PCAL9
  • detail: I/O Expander 16 I²C 400kHz 24-HWQFN (4x4)
