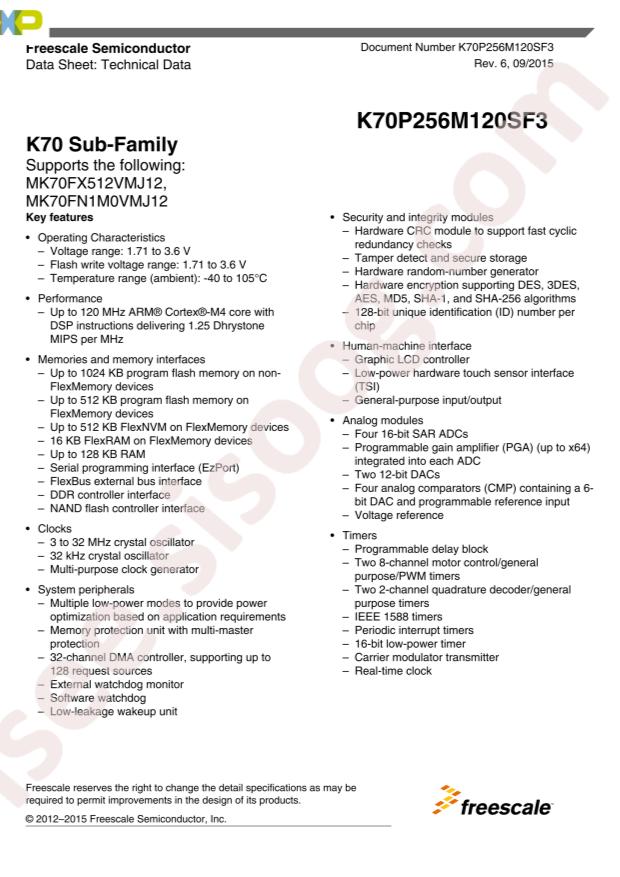

دیتاشیت MK70FN1M0VMJ12
مشخصات دیتاشیت
| نام دیتاشیت | MK70FN1M0VMJ12 |
|---|---|
| حجم فایل | 92.926 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 96 |
MK70FN1M0VMJ12 |
دانلود دیتاشیت |
|---|
سایر مستندات
Kinetis Mask Set 3N96B Errata 26 pages
مشخصات فنی
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M4
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 128KB
- Watchdog: Yes
- ADC (Bit): 16bit
- DAC (Bit): 12bit
- Datasheet: NXP Semicon MK70FN1M0VMJ12
- PWM (Bit): -
- LCD Module: Yes
- Real-Time Clock: -
- CPU Maximum Speed: 120MHz
- GPIO Ports Number: 128
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;LCD/LED Driver;Low-VoltageDetect;PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 1MB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.71V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+105°C
- Secure Digital Input and Output: -
- Package: MAPBGA-256
- Manufacturer: NXP Semicon
- Series: Kinetis K70
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M4
- Core Size: 32-Bit
- Speed: 120MHz
- Connectivity: CANbus, EBI/EMI, Ethernet, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG
- Peripherals: DMA, I²S, LCD, LVD, POR, PWM, WDT
- Number of I/O: 128
- Program Memory Size: 1MB (1M x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
- Data Converters: A/D 71x16b; D/A 2x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 256-LBGA
- Supplier Device Package: 256-MAPPBGA (17x17)
- Base Part Number: MK70
- detail: ARM® Cortex®-M4 Kinetis K70 Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 256-MAPPBGA (17x17)
