HV9112NG-G دیتاشیت

HV9112NG-G

مشخصات دیتاشیت

نام دیتاشیت HV9112NG-G
حجم فایل 61.357 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

مشاهده دیتاشیت HV9112NG-G

دانلود دیتاشیت

سایر مستندات

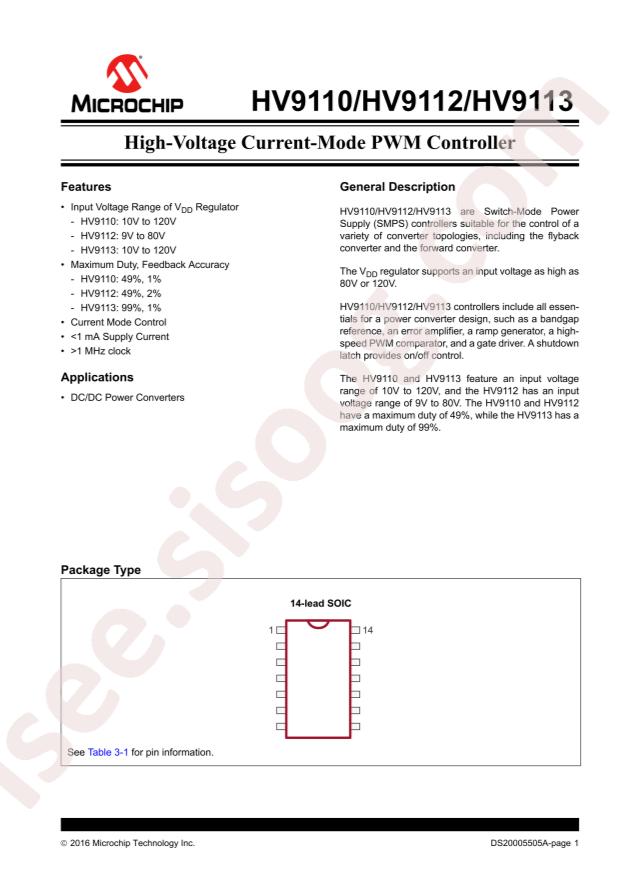

HV9110,12,13 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Controllers
  • Function: Buck-boost type
  • Topology: Flyback
  • Datasheet: Microchip Tech HV9112NG-G
  • Input Voltage: 9V~80V
  • Duty Cycle (Max): 49.4%
  • Number of Outputs: 1
  • Switching Frequency: 3MHz
  • Operating Temperature: -55°C~+125°C@(TJ)
  • Synchronous Rectification: NO
  • Package: SOP-14
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Type: Transistor Driver
  • Output Configuration: Positive
  • Output Phases: 1
  • Voltage - Supply (Vcc/Vdd): 9V ~ 80V
  • Frequency - Switching: 3MHz
  • Synchronous Rectifier: No
  • Clock Sync: No
  • Serial Interfaces: -
  • Control Features: Enable, Frequency Control, Reset
  • Mounting Type: Surface Mount
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 14-SOIC
  • Base Part Number: HV9112
  • detail: Flyback, Forward Converter Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 14-SOIC
