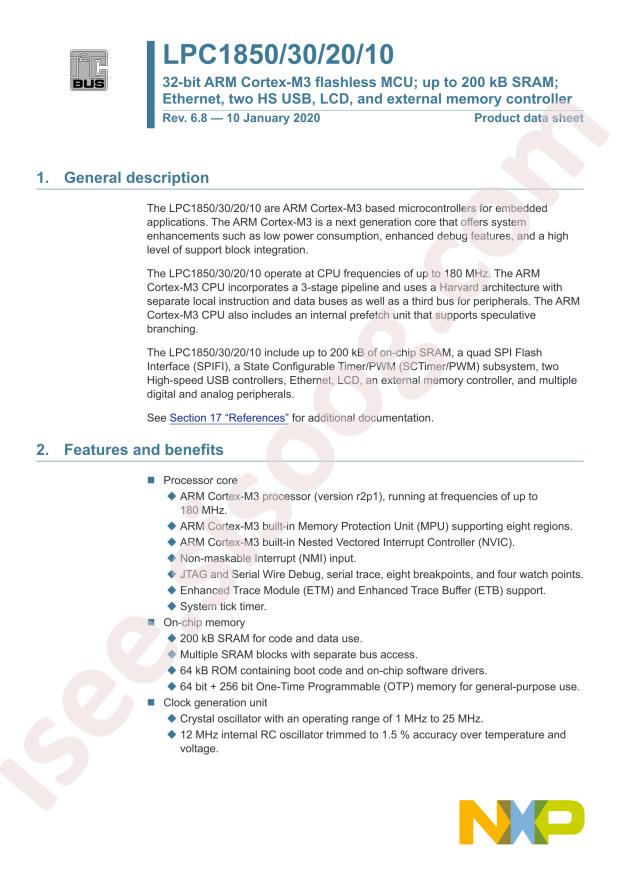

- دیتاشیت LPC1830FET256,551
LPC1830FET256,551 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LPC1830FET256,551 |
|---|---|
| حجم فایل | 85.019 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 154 |
دانلود دیتاشیت LPC1830FET256,551 |
دانلود دیتاشیت |
|---|
سایر مستندات
LPC1850,30,20,10 Datasheet 154 pages
مشخصات فنی
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M3
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 200KB
- Watchdog: -
- ADC (Bit): 10bit
- DAC (Bit): 10bit
- Datasheet: NXP Semicon LPC1830FET256,551
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 180MHz
- GPIO Ports Number: 164
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;PWM
- Program Memory Type: -
- Direct Memory Access: -
- Program Storage Size: -
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.2V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LBGA-256
- Manufacturer: NXP Semicon
- Series: LPC18xx
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M3
- Core Size: 32-Bit
- Speed: 180MHz
- Connectivity: CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG
- Peripherals: Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
- Number of I/O: 164
- Program Memory Size: -
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 2.2V ~ 3.6V
- Data Converters: A/D 8x10b; D/A 1x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 256-LBGA
- Supplier Device Package: 256-LBGA (17x17)
- Base Part Number: LPC18
- detail: ARM® Cortex®-M3 LPC18xx Microcontroller IC 32-Bit 180MHz ROMless 256-LBGA (17x17)
