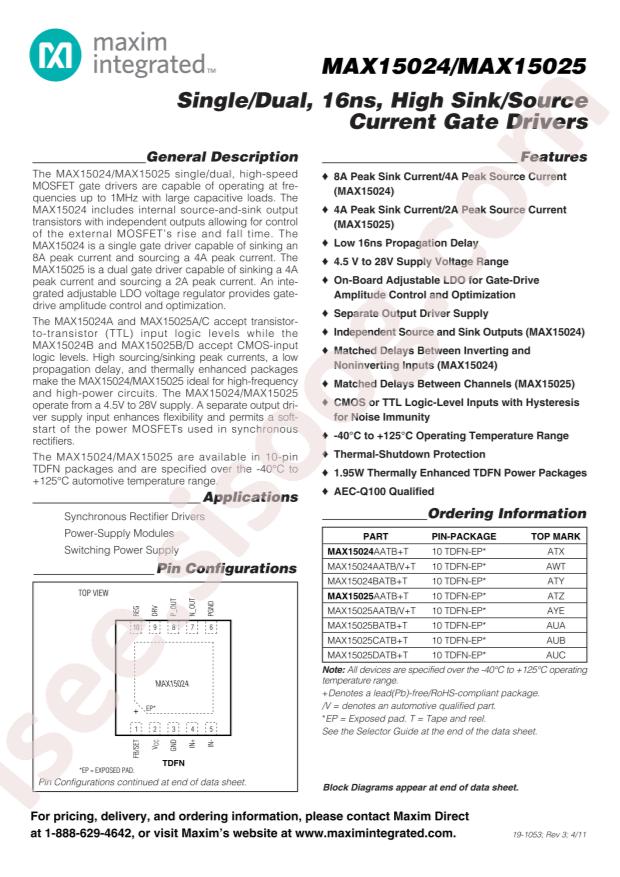

MAX15024AATB+T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX15024AATB+T |
|---|---|
| حجم فایل | 112.594 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت MAX15024AATB+T |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
MAX15024/25 16 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Analog Devices Inc./Maxim Integrated MAX15024AATB+T
- Fall Time: 16ns
- Load Type: MOSFET
- Rise Time: 22ns
- Supply Voltage: 4.5V~28V
- Number of Drivers: 1
- Driven Configuration: Low Side
- Operating Temperature: -40°C~+150°C@(Tj)
- Peak Output Current(sink): 8A
- Peak Output Current(source): 4A
- Package: DFN-10(3x3)
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Current - Peak Output (Source, Sink): 4A, 8A
- Supplier Device Package: 10-TDFN-EP (3x3)
- Base Part Number: MAX15024
- Input Type: Inverting, Non-Inverting
- Gate Type: N-Channel MOSFET
- Part Status: Active
- Channel Type: Single
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Series: Automotive, AEC-Q100
- Mounting Type: Surface Mount
- Package / Case: 10-WFDFN Exposed Pad
- Packaging: Cut Tape (CT)
- Voltage - Supply: 4.5V ~ 28V
- Rise / Fall Time (Typ): 22ns, 16ns
- detail: Low-Side Gate Driver IC Inverting, Non-Inverting 10-TDFN-EP (3x3)
