دیتاشیت TEA18363LT/1J

TEA18363LT

مشخصات دیتاشیت

نام دیتاشیت TEA18363LT
حجم فایل 246.322 کیلوبایت
نوع فایل pdf
تعداد صفحات 27

دانلود دیتاشیت TEA18363LT

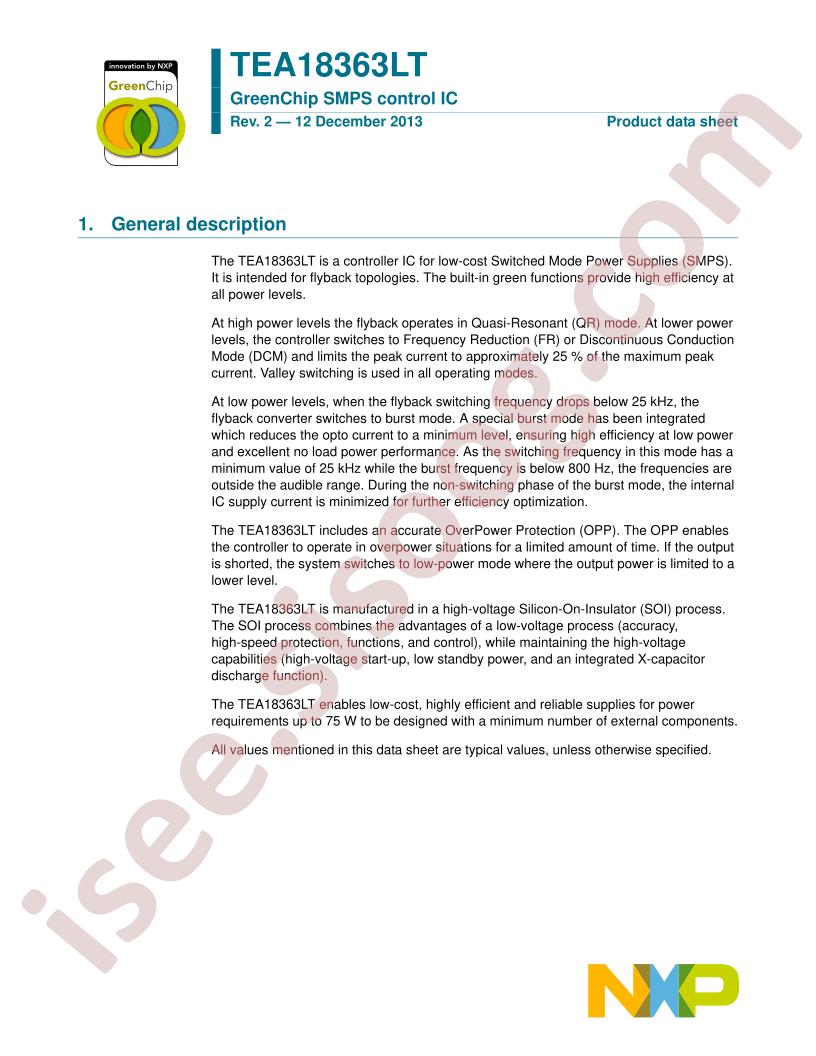

TEA18363LT Datasheet

مشخصات

  • Manufacturer: NXP USA Inc.
  • Series: GreenChip™
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Output Isolation: Isolated
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Topology: Flyback
  • Voltage - Start Up: 14.9V
  • Voltage - Supply (Vcc/Vdd): 9.9V ~ 30V
  • Duty Cycle: -
  • Frequency - Switching: 25kHz ~ 132.5kHz
  • Power (Watts): 75W
  • Fault Protection: Over Power, Over Temperature, Over Voltage
  • Control Features: -
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SO
  • Mounting Type: Surface Mount
  • Base Part Number: TEA183
  • detail: Converter Offline Flyback Topology 25kHz ~ 132.5kHz 8-SO
