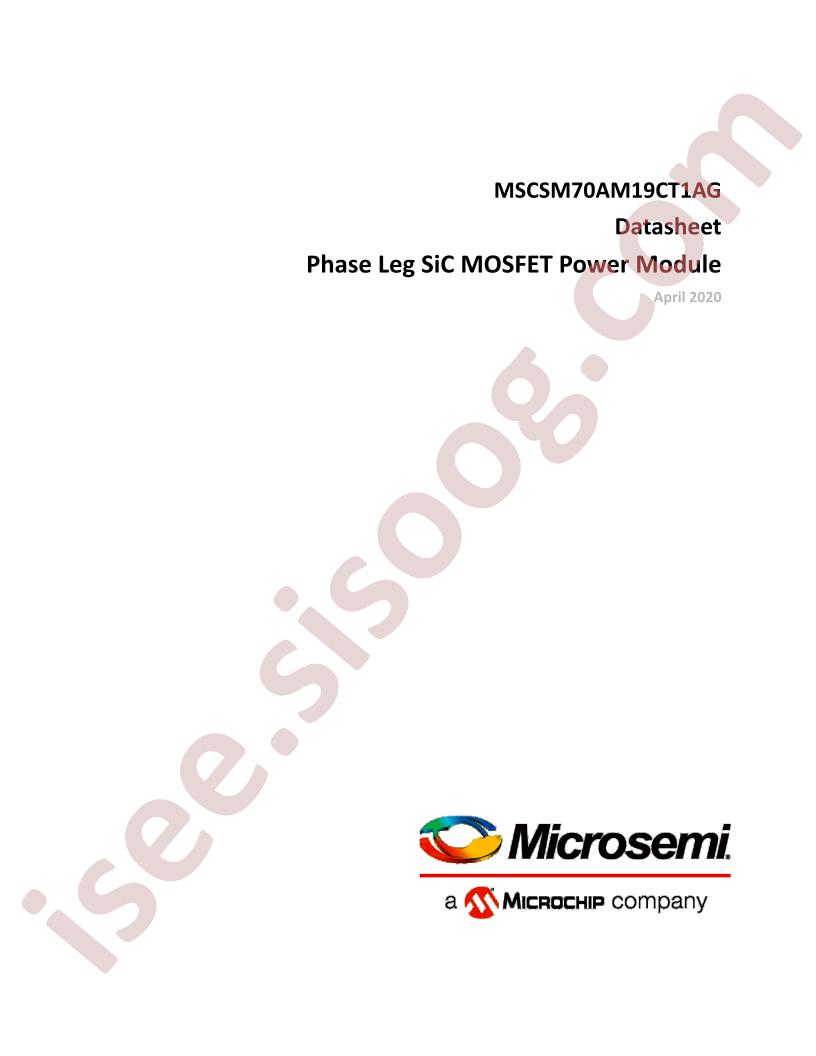

MSCSM70AM19CT1AG دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت MSCSM70AM19CT1AG	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: Microchip Technology
Series: -
Part Status: Active
FET Type: 2 N Channel (Phase Leg)
FET Feature: Silicon Carbide (SiC)
Drain to Source Voltage (Vdss): 700V
Current - Continuous Drain (Id) @ 25°C: 124A (Tc)
Rds On (Max) @ Id, Vgs: 19mOhm @ 40A, 20V
Vgs(th) (Max) @ Id: 2.4V @ 4mA
Gate Charge (Qg) (Max) @ Vgs: 215nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds: 4500pF @ 700V
Power - Max: 365W (Tc)
Operating Temperature: -40°C ~ 175°C (TJ)
Mounting Type: Chassis Mount
Package / Case: Module
Supplier Device Package: SP1F
detail: Mosfet Array 2 N Channel (Phase Leg) 700V 124A (Tc) 365W (Tc) Chassis Mount SP1F
