MSCSM70TAM10CTPAG دیتاشیت

مشخصات دیتاشیت

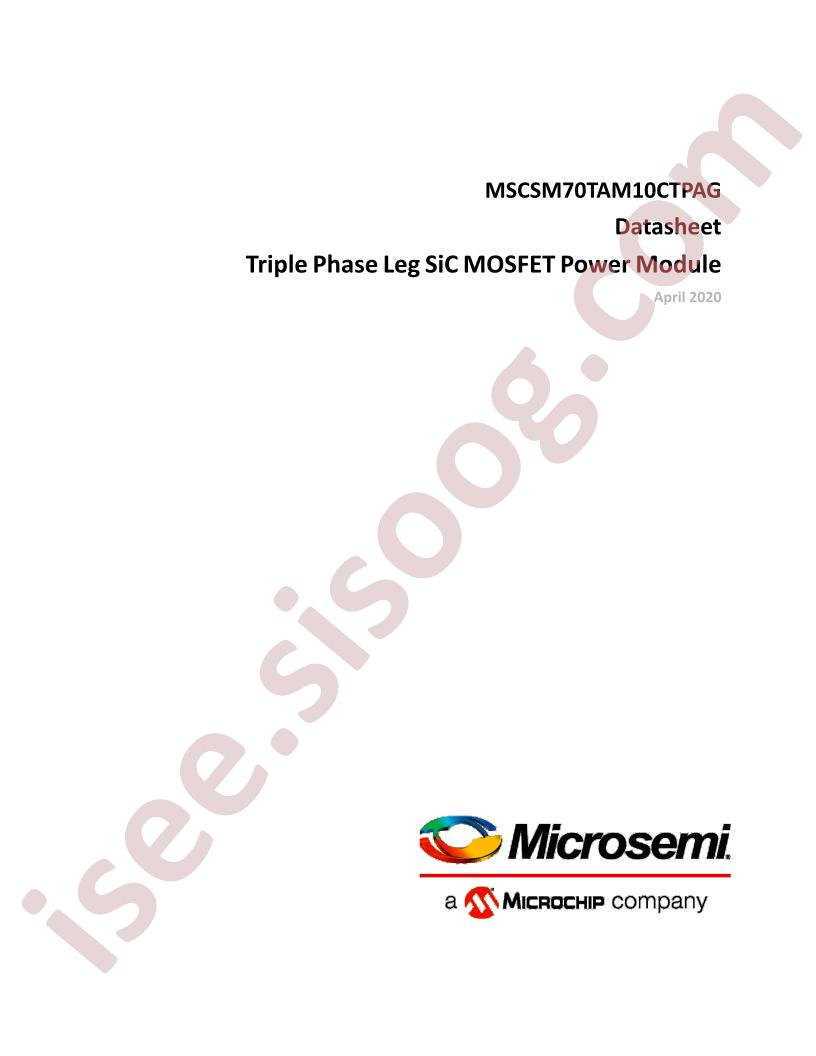

مشاهده دیتاشیت MSCSM70TAM10CTPAG	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: Microchip Technology
Series: -
Part Status: Active
FET Type: 6 N-Channel (3-Phase Bridge)
FET Feature: Silicon Carbide (SiC)
Drain to Source Voltage (Vdss): 700V
Current - Continuous Drain (Id) @ 25°C: 238A (Tc)
Rds On (Max) @ Id, Vgs: 9.5mOhm @ 80A, 20V
Vgs(th) (Max) @ Id: 2.4V @ 8mA
Gate Charge (Qg) (Max) @ Vgs: 430nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds: 9000pF @ 700V
Power - Max: 674W (Tc)
Operating Temperature: -40°C ~ 175°C (TJ)
Mounting Type: Chassis Mount
Package / Case: Module
Supplier Device Package: SP6-P
detail: Mosfet Array 6 N-Channel (3-Phase Bridge) 700V 238A (Tc) 674W (Tc) Chassis Mount SP6-P
