- دیتاشیت MC9S08QA4CFQE

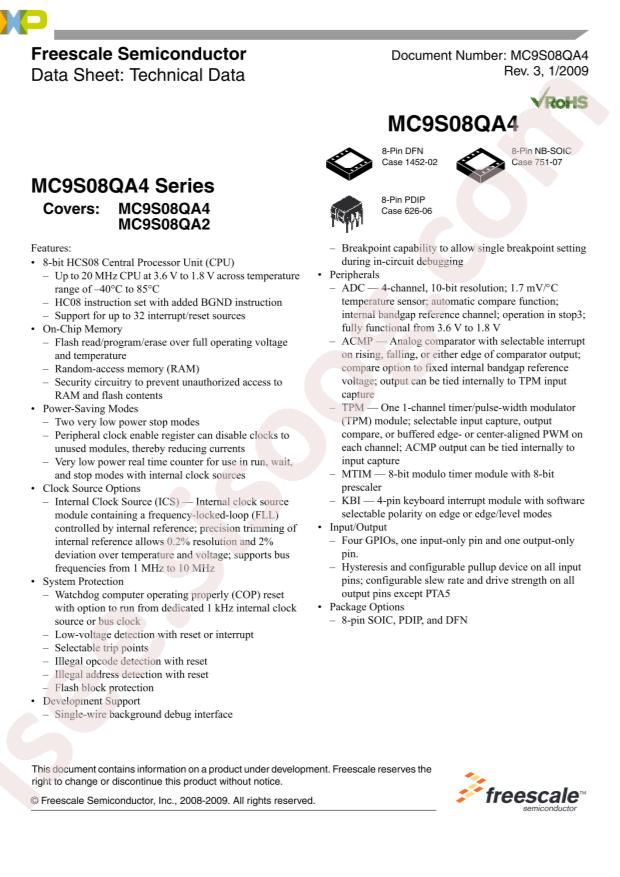

MC9S08QA4CFQE دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC9S08QA4CFQE |
|---|---|
| حجم فایل | 96.372 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
دانلود دیتاشیت MC9S08QA4CFQE |
دانلود دیتاشیت |
|---|
سایر مستندات
MC9S08QA2,4 Ref Manual 32 pages
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: Other series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 256Byte
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: NXP Semicon MC9S08QA4CFQE
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 20MHz
- GPIO Ports Number: 4
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT;Low-VoltageDetect;PWM
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 4KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: DFN-8-EP(4x4)
- Manufacturer: NXP Semicon
- Series: S08
- Packaging: Tray
- Part Status: Active
- Core Processor: S08
- Core Size: 8-Bit
- Speed: 20MHz
- Connectivity: -
- Peripherals: LVD, POR, PWM, WDT
- Number of I/O: 4
- Program Memory Size: 4KB (4K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Data Converters: A/D 4x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-DFN-EP (4x4)
- Base Part Number: MC9S0
- detail: S08 S08 Microcontroller IC 8-Bit 20MHz 4KB (4K x 8) FLASH 8-DFN-EP (4x4)
