MAX5883EGM+D دیتاشیت

MAX5883EGM+D

مشخصات دیتاشیت

نام دیتاشیت MAX5883EGM+D
حجم فایل 98.618 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

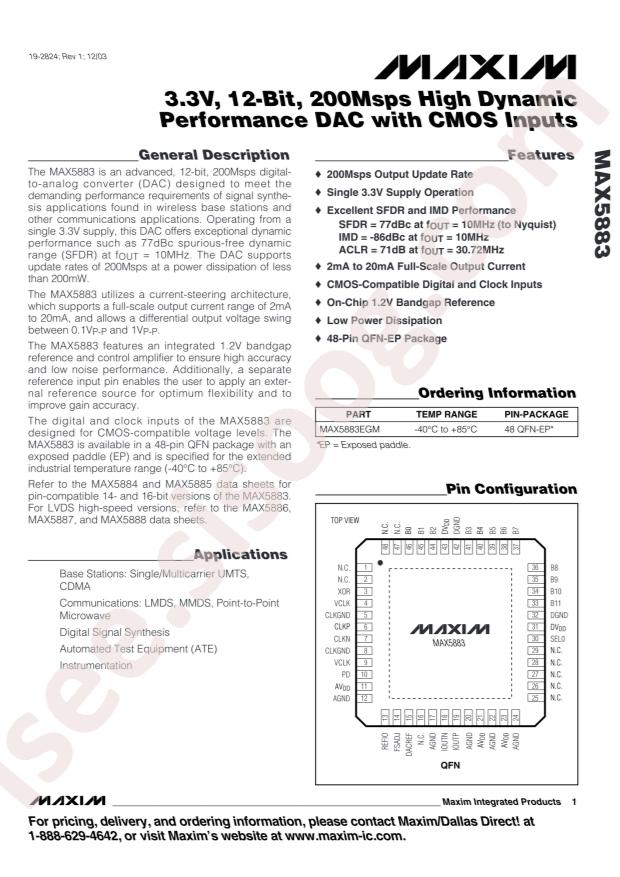

مشاهده دیتاشیت MAX5883EGM+D

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX5883 16 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX5883EGM+D
  • Interface: Parallel
  • Resolution: 12Bit
  • Output Type: Current-非缓冲
  • Settling Time: 11us
  • Supply Voltage: 3.135V~3.465V
  • Integral nonlinearity: ±0.3LSB;±0.2LSB
  • Operating Temperature: -40°C~+85°C
  • Package: QFN-48-EP(7x7)
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Mounting Type: Surface Mount
  • Number of D/A Converters: 1
  • Data Interface: Parallel
  • Voltage - Supply, Digital: 3.135V ~ 3.465V
  • Reference Type: External, Internal
  • Number of Bits: 12
  • Part Status: Active
  • INL/DNL (LSB): ±0.3, ±0.2
  • Differential Output: Yes
  • Series: -
  • Voltage - Supply, Analog: 3.135V ~ 3.465V
  • Base Part Number: MAX5883
  • Supplier Device Package: 48-QFN-EP (7x7)
  • Package / Case: 48-QFN Exposed Pad
  • Packaging: Tube
  • Architecture: Current Steering
  • detail: 12 Bit Digital to Analog Converter 1 48-QFN-EP (7x7)
