OL2385AHN/001C0Y دیتاشیت

مشخصات دیتاشیت

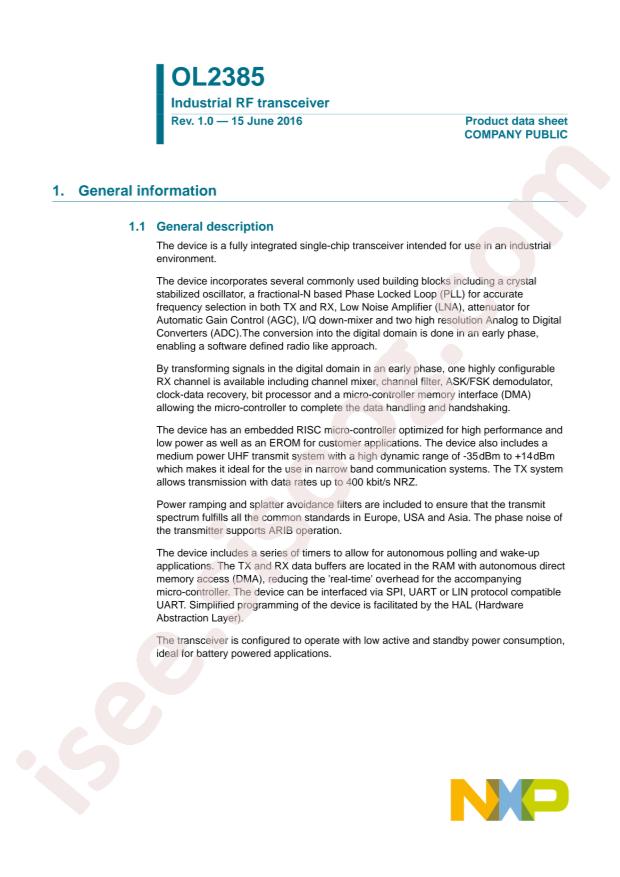

مشاهده دیتاشیت OL2385AHN/001C0Y	دانلود دیتاشیت

OL2385 85 pages

RoHS: true
Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
Datasheet: NXP Semicon OL2385AHN/001C0Y
Package: HVQFN-48-EP(7x7)
Manufacturer: NXP Semicon
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Type: TxRx + MCU
RF Family/Standard: -
Protocol: Sigfox, Wireless M-Bus, Zigbee®
Modulation: ASK, FSK
Frequency: 158MHz ~ 960MHz
Data Rate (Max): 400kbps
Power - Output: 14dBm
Sensitivity: -124dBm
Memory Size: -
Serial Interfaces: SPI, UART
GPIO: 12
Voltage - Supply: 1.9V ~ 5.5V
Current - Receiving: -
Current - Transmitting: 29mA
Operating Temperature: -40°C ~ 85°C
Package / Case: 48-VFQFN Exposed Pad
Base Part Number: OL238
detail: IC RF TxRx + MCU Sigfox, Wireless M-Bus, Zigbee® 158MHz ~ 960MHz 48-VFQFN Exposed Pad
